What You’ll Learn 🎯

Define human vibration and its impact—understand whole‑body vs. hand–arm exposure, health effects (HAVS, white finger, lumbar issues) and relevant standards (ISO 2631‑1, 8041, 2631‑5, 5349)
Set up triaxial accelerometers using appropriate adapters (seat pad, hand‑held) and select suitable ICP sensors (50 g – 500 g range) connected via high-resolution Dewesoft DAQ (Sirius, DewE‑43)

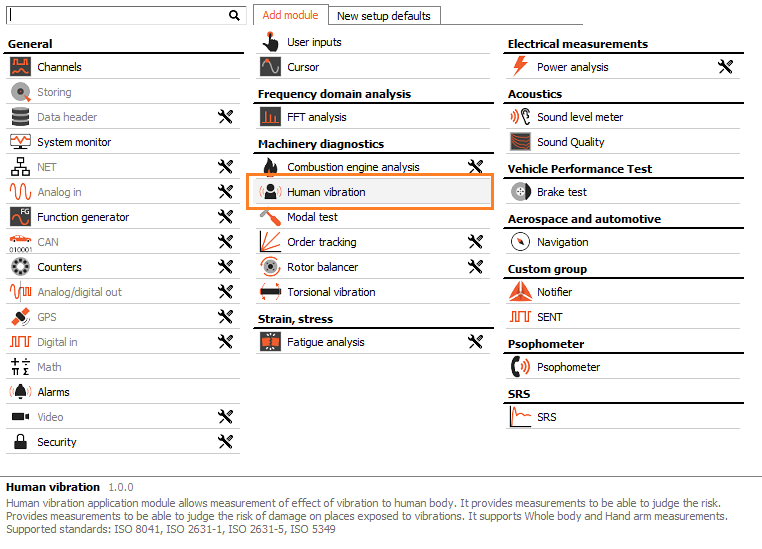

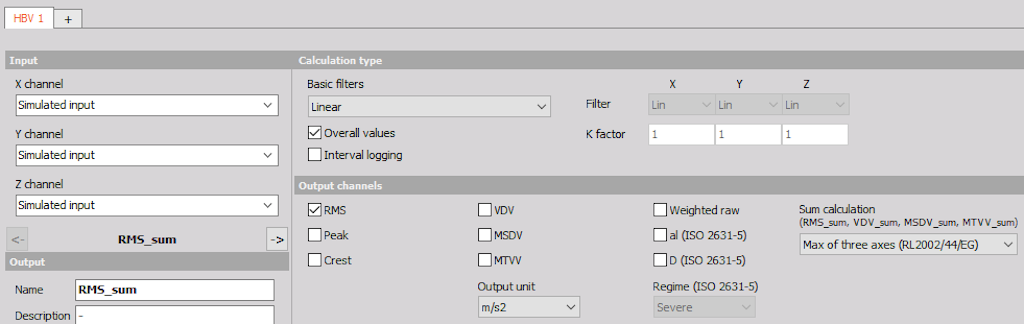

Use the DewesoftX Human Vibration module to measure weighted RMS, peak, crest, VDV, MSDV, MTVV, SEAT transmissibility, lumbar response, and dose metrics per ISO standards

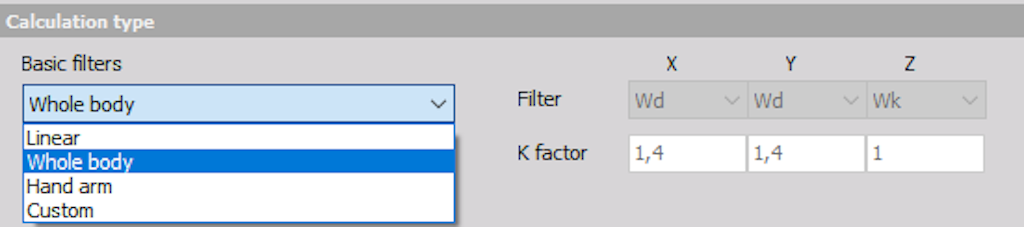

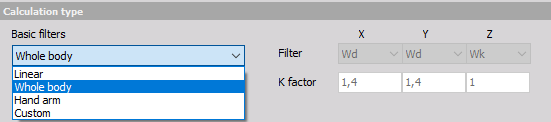

Configure whole‑body and hand–arm measurement modes, select appropriate frequency-weighted filters (Wb, Wk, Wh, custom), and adjust sampling rates and logging intervals
Monitor daily vibration exposure (A(8) value), apply Palmgren‑Miner accumulation logic, and compare results with EU Exposure Action/Limit Values

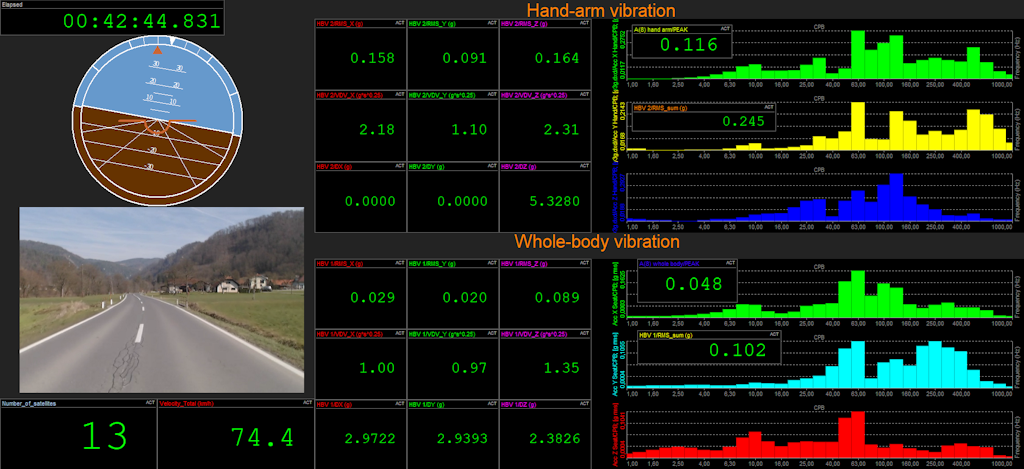

Test real-world use cases—e.g. motorcycle seat vibration, handhold tool exposure—with live monitoring and offline analysis

Course overview

This course comprehensively covers human vibration measurement using DewesoftX, following the ISO 2631, 8041, and 5349 standards. You’ll begin by learning vibration fundamentals and body-related health risks—from white finger and lumbar damage to motion-induced nausea—supported by exposure action and limit thresholds.

You’ll then configure the Human Vibration module: install seat‑pad or hand‑arm adapters, define triaxial accelerometer inputs, select measurement modes and filtering profiles (whole‑body vs hand‑arm), and use high-resolution Dewesoft DAQ for high-fidelity signal capture . Live displays will show weighted RMS, peak, crest factor, VDV, MSDV, MTVV, and frequency-weighted values per axis.

Advanced sessions explore practical applications: calculating SEAT transmissibility by comparing seat and floor acceleration, assessing lumbar spine responses, and deriving daily A(8) exposure values using interval logging . You’ll also monitor multi-day exposure with ISO-compliant dose computations.

By the end of the training, you’ll be able to design and deploy vibration tests, collect compliant measurements, analyze data in DewesoftX, and evaluate worker exposure against regulatory thresholds—empowering improved health, safety, and ergonomic outcomes.

Page 1 of 17

Human vibration and why we need to measure it

Human vibration is defined as the effect of mechanical vibration of the environment on the human body. During our normal daily life, we are exposed to various sources of vibration, for example, in buses, trains, cars. Many people are also exposed to other vibrations during their working day, for example, vibrations produced by hand tools, machinery or heavy vehicles.

Human vibration can be pleasant, unpleasant or harmful. Gentle vibrations, such as that experienced when sitting in a rocking chair, dancing or running are pleasant. More violent vibrations, for example, those experienced when traveling in a car down a bumpy road or when operating a power tool, are unpleasant or harmful. The harmfulness of vibration depends on its intensity and frequency content and the time of exposure.

Especially at workplaces exposed to vibrations, there is a big likelihood of permanent damage to some parts of the human body. One effect is known as Raynaud's disease or the effect of white fingers where the fingers change color to white and become painful. Another typical effect of working with heavy machinery or vehicles (a typical example is a helicopter) is the problems with the lumbar region.

Harmful effects of vibration on human health is a serious problem. Mechanical vibrations transmitted from power tools and other vibrating devices to the human body may have a negative impact directly on individual tissues and blood vessels, can cause excitation of vibration of the internal organs or body parts, and even cellular structures.

In practice, the most dangerous is hand-arm vibration transmitted to the upper parts of the body, which can cause pathological changes in the nervous system, vascular (cardiovascular) and osteoarticular. Changes in the human body resulting from the contact with the mechanical vibrations are recognized as an occupational disease, called the vibration syndrome. The three forms of vibration disease are identified: neurovascular, osteoarticular, and mixed. According to data, in 2008 the percentage of vibration syndrome in all occupational diseases was: 2.9% in forestry, 5.6% in mining, 4.3% in the production of metals and as much as 8.7% in construction.

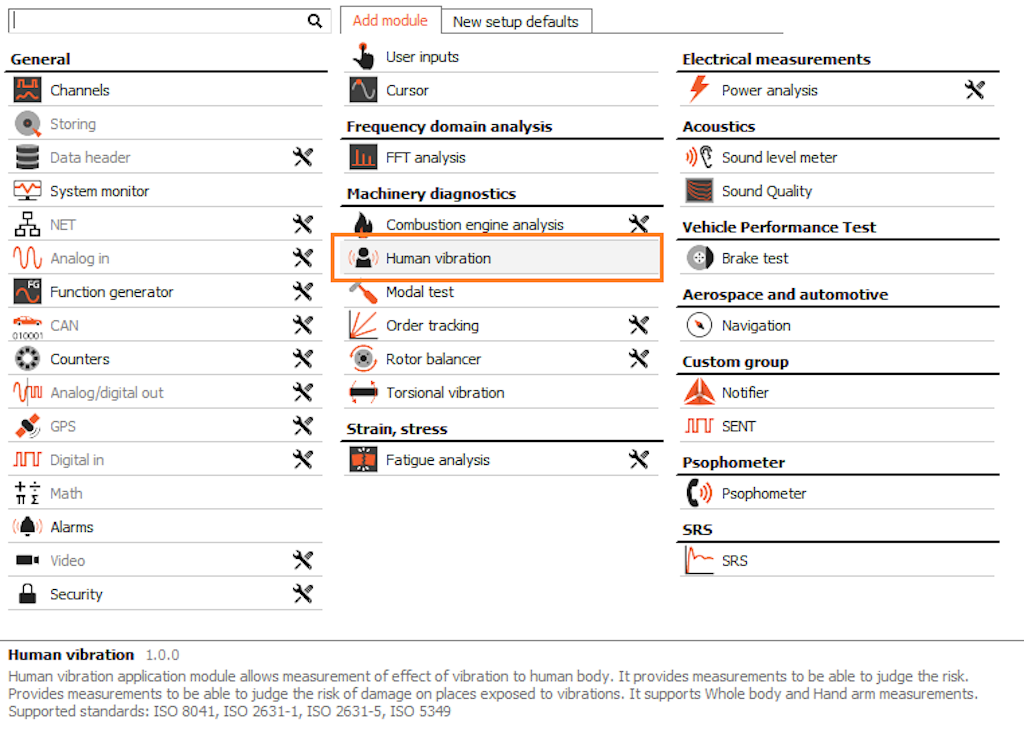

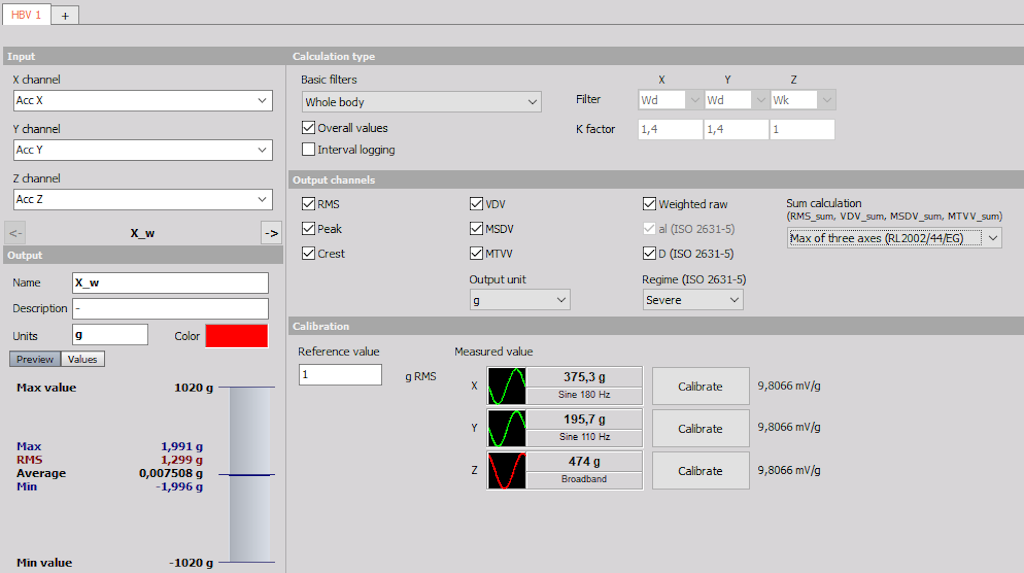

The human vibration module provides measurements to be able to judge the risk of such damage. It is based on an ISO 2631-1 (dated in 1997) standard that defines basic procedures, ISO 8041 (dated 2017), which defines exact procedures for measurements and ISO 2631-5 (dated 2018) which defines evaluation of human exposure to whole-body vibration.

There are two main types of measurements:

whole body measurements (are measured with the help of the so-called seat sensor, where we need to install the triaxial sensor in the rubber adapter on which we sit on)
hand-arm measurements (is a measurement of hand-arm where the sensors are installed on special adapters for holding them on the handle or between fingers)

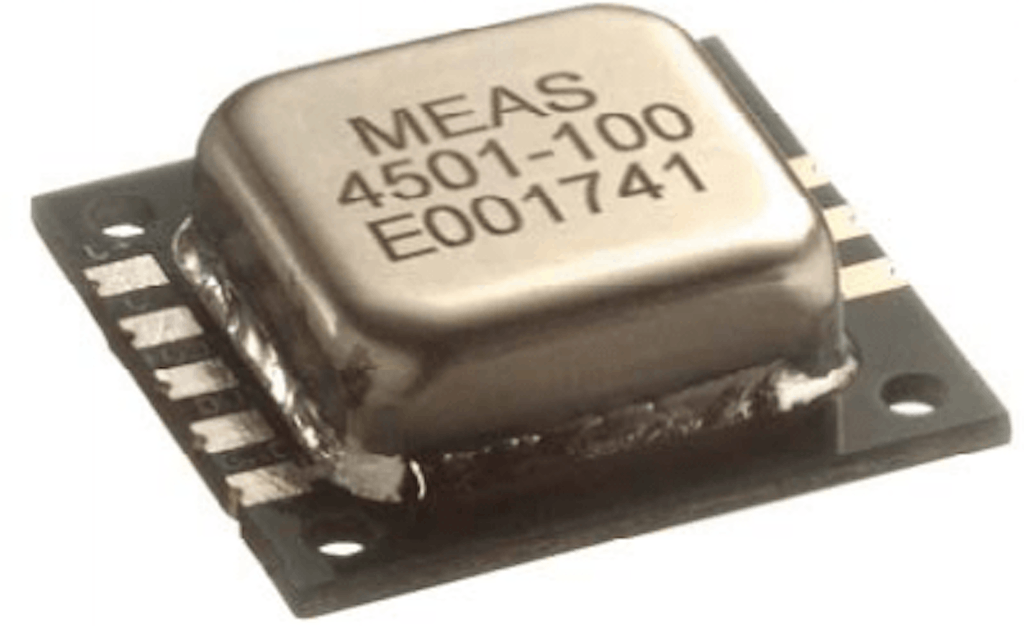

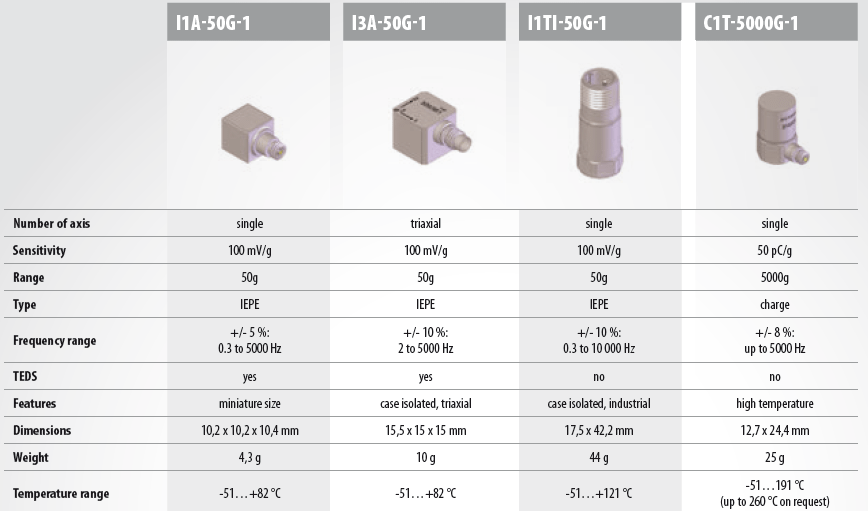

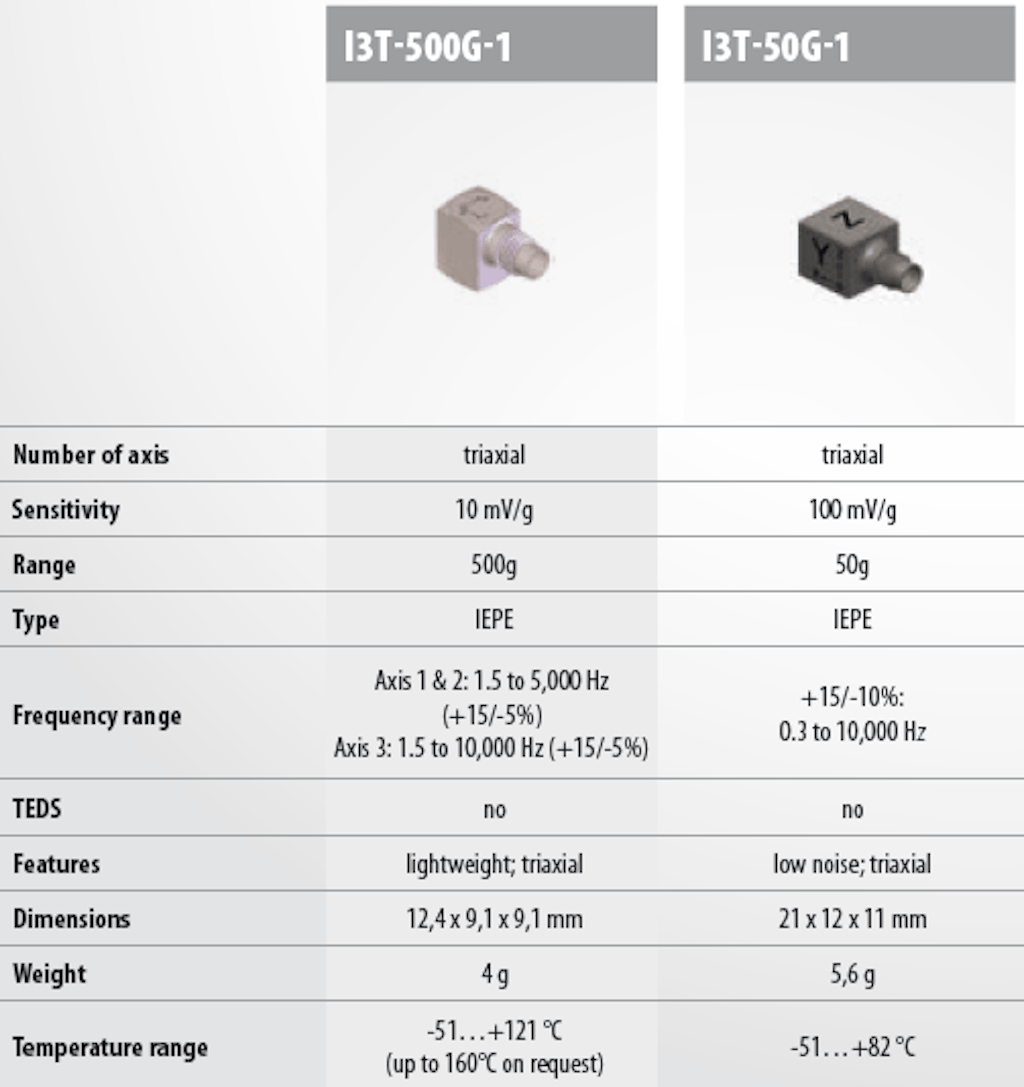

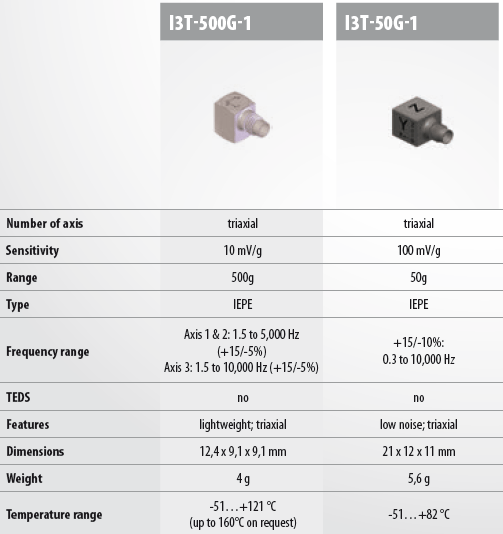

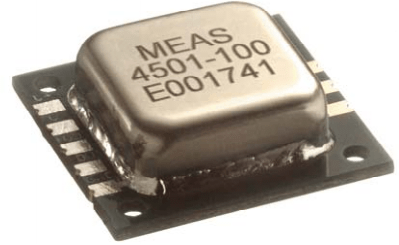

Both measurements are performed with triaxial accelerometers (it is very common to use 50 g sensors) and using special adapters. For workplaces with high vibrations (for example impact hammers), it is necessary to use high g sensors (500 g or more). This sensor should also survive the high shock.

For the measurement, we need several ICP channels with a 24 bit sigma-delta AD card (Sirius or Dewe-43, for example).

In theory, we would need to measure a full working day with all the significant loads. Often the measurement interval is shorter, but we need to ensure that all the significant vibration patterns are covered correctly in the obtained measurements.

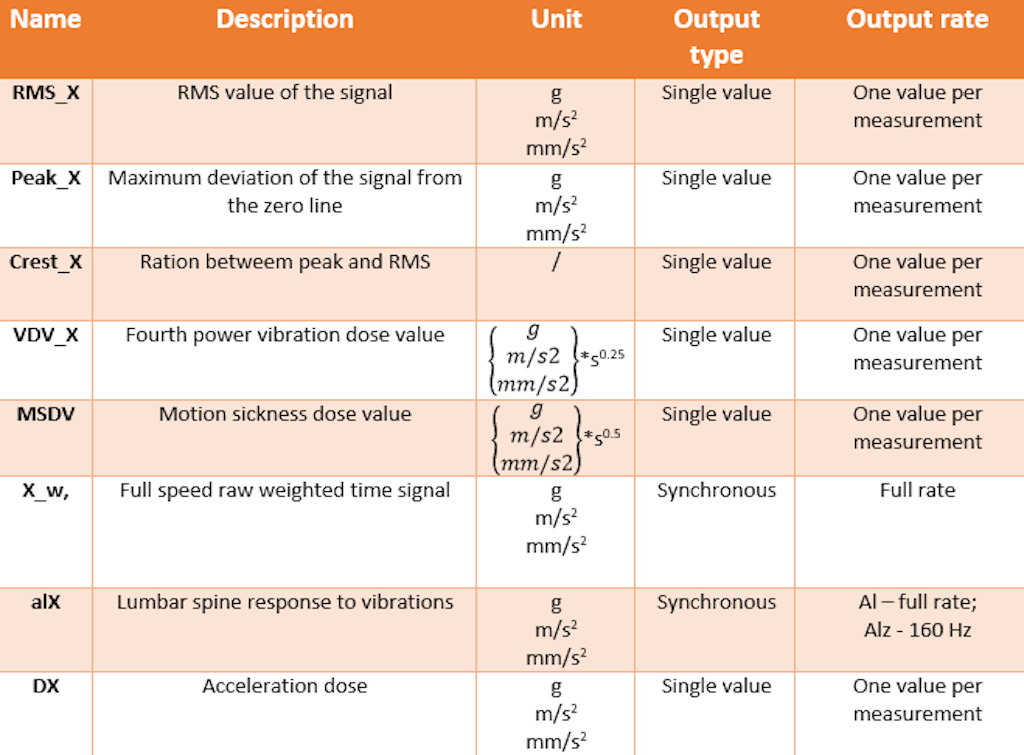

There are several parameters, that needs to be calculated:

RMS - the "root means square" value is a statistical measure of the magnitude of a weighted signal,
Peak is the maximum deviation of the signal from the zero line,
Crest factor is the ratio between the peak and RMS,
VDV is the fourth power vibration dose value,
MSDV is the motion sickness dose value,
MTVV is the maximum transient vibration value, calculated at a one-second interval.

Page 1 of 17

Measuring human vibration

Vibrations can be desired and perceived as pleasant or give useful feedback over ongoing processes. However, just as often they are undesired, irritating, cause stress, induce panic and can lead to physical reactions such as sweating, nausea and vomiting. While these can be extremely unpleasant experiences and strongly influence a person's life and mental state, for most people the effect of vibrations will only be temporary or, once the exposure to the vibrations is stopped, the physical effects will disappear over time.

The physical effect of vibrations on the human body may also be permanent. The risk for irreparable injuries is especially high for human vibration occurring in context with work, where the vibration magnitudes can be substantial, the exposure times long and the vibration exposure may occur regularly or even daily. Typical risk groups are drivers of lorries, trucks, agricultural/farming, construction site and forest machinery, pilots of certain helicopters, and workers operating hand-fed machines, hand-guided machines or hand-held power tools and who need to hold workpieces. During their work, a worker's entire body or parts of it, especially the hand-arm region may be exposed to excessive vibrations.

Unfortunately, the relation between vibration exposure and health damage is often not that obvious. Injuries may develop over a long period of time and other activities, such as lifting heavy loads, could be the reason for the injury (e.g., lower back pain). A worker may feel numbness or fatigue after a working day while exposed to intensive vibrations, but initially these effects will only be temporary and the next day everything will seem fine. However, once these effects are permanent (such as cold fingers, lower back pain, etc.) it is often too late. Many of these injuries are irreversible.

It is therefore of the utmost importance to prevent excessive vibration exposure. In Europe, the Vibration Directive (Directive 2002/44/EC) has been introduced in order to set minimum standards for controlling the risks, both from hand-arm and whole-body vibration. The directive sets action values, above which it requires employers to control the vibration risks, and limit values, above which workers must not be exposed.

For hand-arm vibrations these values are:

A daily exposure action value of 2.5 m/s2
A daily exposure limit value of 5 m/s2

For whole-body vibrations these values are:

A daily exposure action value of 0.5 m/s2 (or, at the choice of the individual EU Member State, a vibration dose value of 9.1 m/s)
A daily exposure limit value of 1.15 m/s2 (or, at the choice of the individual EU Member State, a vibration dose value of 21 m/s)

Employers are obliged to determine and assess the risk resulting from both hand-arm and whole-body vibrations and ensure that the exposure values are not exceeded. If analysis suggests that workers are at risk, employers should set a management program into action to keep the exposure to vibration at a minimum and prevent the development and progression of injury.

At the first stage, the analysis can be based on emission values, i.e., data of vibration magnitudes that occur when operating or working with a particular tool, vehicle or machinery. Today such data is often provided by manufacturers of machines and vehicles but can also be found in databases maintained by independent organisations and institutes. However, employers must be aware that these data have been determined following harmonised codes. Emission data determined according to such standards are primarily meant to allow the customer direct comparison of similar products. In practice, however, the emission values occurring under real conditions may be significantly greater.

The reason for this can be wear, overly rough road surfaces, operating vehicles or mobile machinery on sloped surfaces, and other factors of real, everyday usage. Therefore, measurements at the site are highly recommended to validate and verify that using the tool or machine in that particular context does not lead to larger vibration magnitudes than specified by the producer.

Whether data are taken from databases or collected by carrying out vibration measurements at the site, it is very important to perform a detailed analysis of the precise exposure times at the specific working place. This is not only important for finding the actual daily vibration exposure for the current situation, but also to have sufficiently precise data with which to work when making suggestions to reduce exposure and risk.

Page 1 of 17

Measured parameters

To determine a person's vibration exposure, you need to collect information about the vibration magnitude and duration of the various working processes, i.e., for how long and often the person is exposed to vibrations of a certain type and magnitude.

Vibration magnitude

Vibration magnitude could be expressed in terms of acceleration, velocity or displacement observed for a vibration process. All three make sense because the human body responds to any of them, depending on the frequency of motion.

An example of acceleration, displacement and velocity signal in a frequency domain

However, in many standards related to the measurement of human vibration, acceleration is the agreed-upon quantity for expressing magnitudes. This is mainly a matter of convenience since the classical vibration sensor is the accelerometer; which delivers the signal proportional to acceleration.

In general, accelerometer signals will be filtered and frequency-weighted before further processing. Filtering is applied because the analysis should only include those frequencies that are thought to be important for hand-arm or whole-body vibration. Further, the frequencies included are weighted differently. The weighting reflects the likelihood of damage from vibrations at different frequencies. Therefore, depending on where (e.g., feet, seat, backrest, palms) and in which direction (e.g., front and back vs. side to side) the measurement is taken, different frequency weightings may be used. The reason is that the human dynamic system reacts differently depending on where and in which direction the vibrations enter the body. For example, the fore and aft motion of a seated person is very different from side-to-side motion for the same person.

The purpose of the subsequent analysis is to quantify the acceleration appropriately. Typically the so-called time-averaged weighted acceleration value, a frequency-weighted root mean square (RMS) of a vibration signal, is determined and reported in order to quantify the vibration to which a worker would be exposed. In context with human vibration, it is a measure for the average amount of vibration energy that would enter the human body.

RMS vibration magnitude is a good representation of processes whose vibrations are continuous or intermittent rather than shock-like. Tools such as drilling machines, chain saws, and vibrating plate tamper fall into that category. Even impact wrenches can be well described with RMS vibration magnitude, even though, each single operation cycle (tightening a single nut or a series of tightenings) may last only a few seconds. Whole-body vibrations, such as driving a bus or lorry over a standard, well-maintained road or sitting in a train or other railway transport, are also well described with an RMS value.

However, care must be taken when investigating shocks and processes with transients (i.e., sudden changes in the acceleration) - particularly when dealing with whole-body vibrations. For example, a vehicle driving across bumps in the road or construction machines operated (e.g., cutting and loading trees or crushing concrete) may easily cause shock-like vibrations. For such events, averaging across times much longer than the eventís duration (e.g., taking RMS measurement over the entire working period) would not capture the essence of the problem. The intensity (magnitude) of a single shock, a few shocks or the sudden changes in acceleration may be beyond what the human body can accommodate, but if they are averaged out over a long period of time, their significance would be missed. Therefore, we have to look at the total energy in the event and the maximum vibration values reached during the operation.

Better descriptors for such vibration scenarios are the Vibration Dose Value (VDV), which is a cumulative measure (i.e., sum up the energy, rather than calculate an average), and the Maximum Transient Vibration Value (MTVV), which is the maximum of the so-called running RMS acceleration value, an RMS vibration magnitude with 1 s integration time.

Since MTVV is based on a short integration interval, it will indicate the top vibration magnitudes to which the worker would be exposed. This parameter is especially useful when logged with a short (1 s) interval because the logging profile quickly gives an overview, whether any large vibration magnitude was an exception, appeared often or was constant.

VDV is well suited to reflect the total exposure; it accumulates the vibration energy the worker would be exposed to, thereby putting more weight on peaks and/or sudden changes in the acceleration.

Duration

For a correct assessment of human exposure to vibration, a precise determination of the duration of the vibration exposure is as critical as a correct determination of the vibration magnitude. The estimation of the duration should be based on a detailed observation of the working process. A stopwatch or video recording may be used to capture the duration of operations that lead to vibration exposure. In addition, interviews with workers should be carried out.

When determining exposure duration, it is important to keep in mind the approach used to measure the vibration magnitude. Some operations can be consistent over a period of one or several hours, such as operating a vibrating plate tamper or driving a lorry. Other operations are intermittent or change character after short periods, such as using chain saws, operating forklifts, etc. Finally, for some tools, a single operation cycle may only last a few seconds, such as using impact wrenches. In general, one could follow one of two approaches:

Only measure while the person is exposed to vibrations. Every single measurement would then give a representative quantification of the vibration magnitude observed with a particular machine or vehicle operating in a certain mode (e.g., a chainsaw running idle, cleaning the stem, cutting through small branches and stems or cutting through a big stem; or a lorry driving on a well-maintained road, through a city with stop-and-go, bumps or over the rough surfaces in a sandpit). In these cases the duration to be inserted in the final analysis should just comprise those periods where the worker is really exposed to vibrations from the machine, workpiece or vehicle.
Carry out a single measurement including different modes of operation and breaks, workpiece or tool shifts. Such measurements would give a representative average over an entire working day or a complex working process. The duration to insert in the exposure analysis is then the total time used for this process, including both actual vibration exposure periods and breaks.

Both approaches have advantages and disadvantages. When following the first approach, determining the exact exposure durations requires a detailed study of the working processes. Workers should be interviewed to collect information about the various operations on a typical working day. However, it is also required to identify and verify the duration of exposure through direct observation because the duration is often overestimated by workers; they report how long they are with a vehicle or hold a machine in their hand rather than the actual period where the machine or vehicle was emitting vibrations.

In contrast, determining the duration for a measurement following the second approach is much easier. However, the result does not provide detailed information about to what degree a particular operation, machine, road surface, etc., is responsible for vibration exposure. Detailed information is drowned in the average, making it impossible to find and calculate where an improvement (in terms of reduced risk) can be achieved. Also, events such as putting down the tool or when a driver is rising from a seat will add significantly to the recorded vibration magnitude, even though such events have nothing to do with the human exposure to vibration.

Page 1 of 17

Whole-body vibration measurement

Human exposure to whole-body vibration should be evaluated using the method defined in ISO 2631-1. Whole-body vibration is applicable to motions transmitted from workplace machines and vehicles to the human body through a supporting surface. For health and safety evaluations, this is through the buttocks and feet of a seated person or the feet of a standing person.

When carrying out whole-body measurements, it is preferable to measure over the entire exposure time. If that is not possible or necessary, measurements should be made over periods of at least 20 minutes. Where short measurements are necessary, they should be at least three minutes long and should be repeated to achieve a total measurement time of more than 20 minutes. Longer measurements of 2 hours or more are preferable (half or full working day measurements are sometimes possible).

When assessing whole-body vibrations, acceleration should be picked up at the seat surface for a seated person or underneath the feet of a standing person. The accelerometer should be placed in a Seat Pad, which is preferably fixed to the floor or seat using tape or a strap to ensure that the accelerometer remains at the desired position and is able to withstand any position changes of the driver or operator of a machine. However, for correct results, the Seat Pad must be loaded during the measurement by the worker, who should stand or sit on the pad.

RMS vibration magnitude, Peak value, MTVV and VDV of the frequency-weighted acceleration should be measured simultaneously in all three directions, where Z-direction is always along the main body axis (i.e., for measurements at the feet and seat it is vertical to the seat and floor plane), the X-direction is aligned with the fore-and-aft motion and the Y-direction with a side-to-side motion.

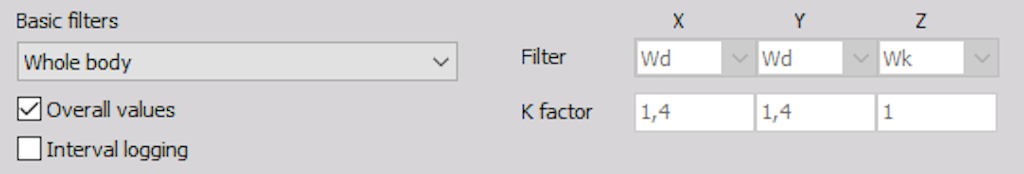

In contrast to hand-arm vibration assessment, frequency weightings are different for X, Y, and Z-direction. In the context of health risk assessment, when measuring whole-body vibration at the feet and seat, ISO 2631-1 requires the use of Wk in the Z-direction, whereas Wd is used for the acceleration in the X and Y directions

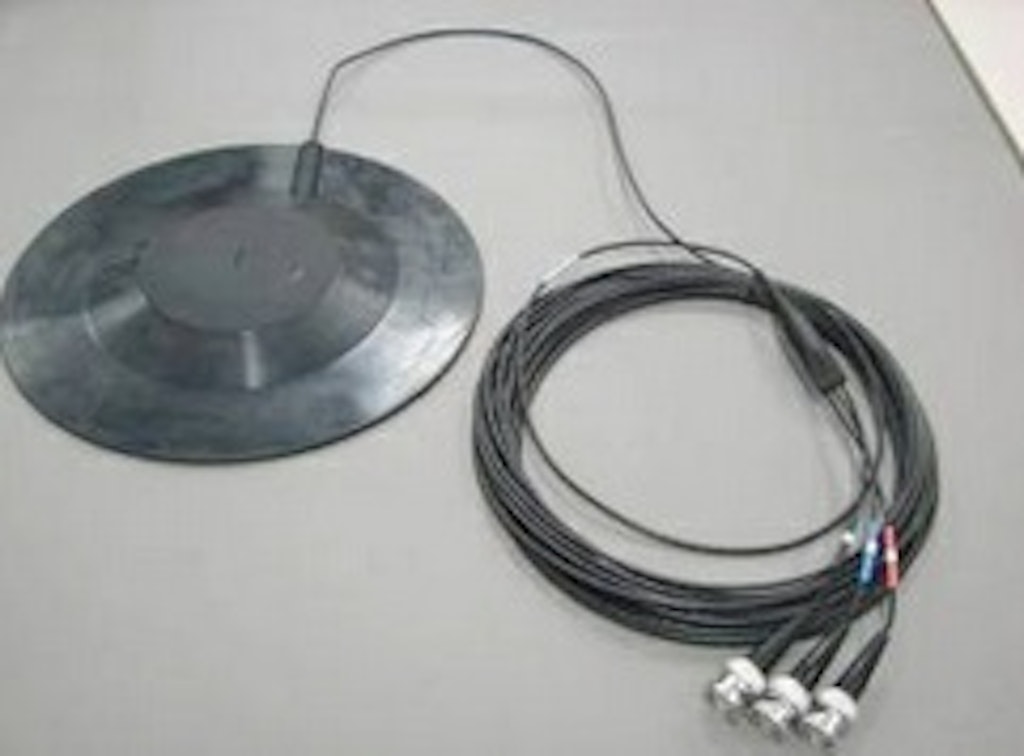

Whole-body vibrations are measured with the help of the so-called seat sensor, where we need to install the triaxial sensor in the rubber adapter on which we sit. It is important that the z-axis is in a vertical direction since it is weighted differently than x and y.

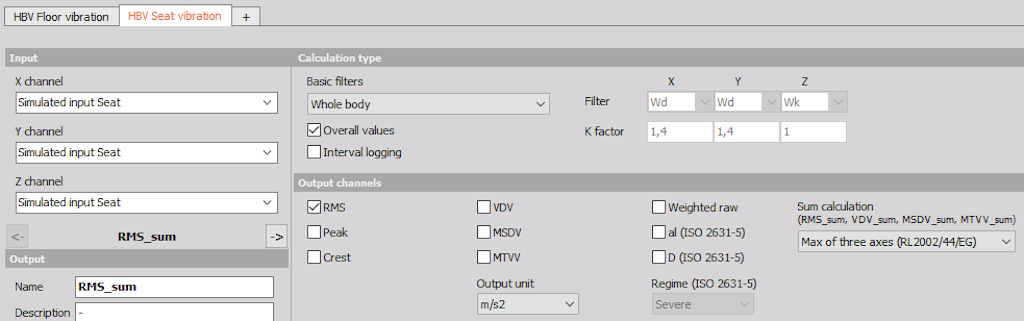

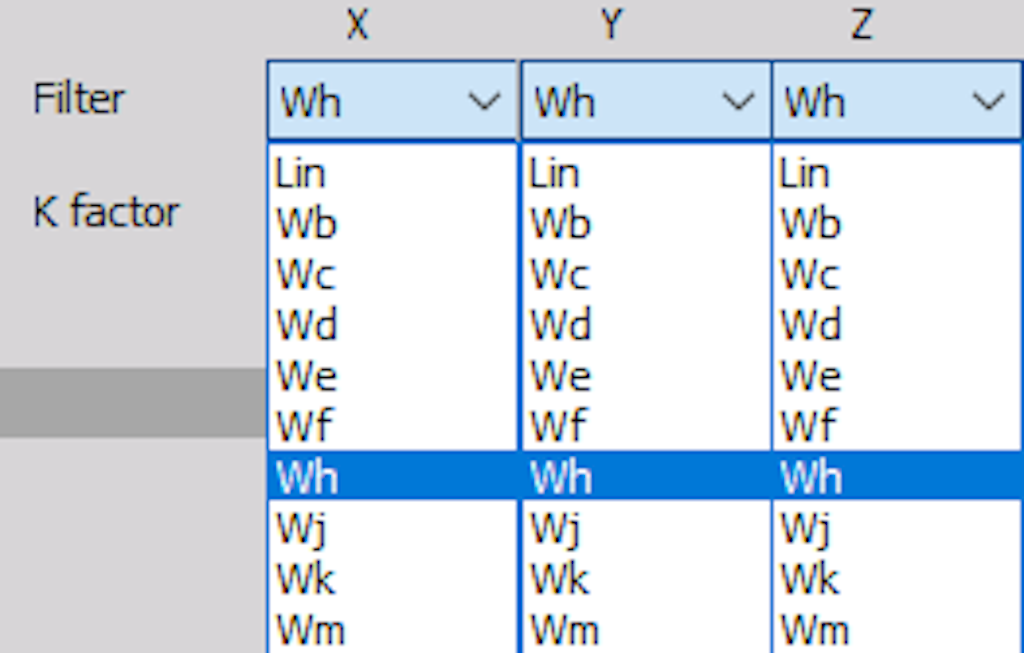

Vibration should always be evaluated by measuring the weighted vibration acceleration. Crest factor determines the method for evaluation of the vibration. In the case of a high crest factor (greater than 9) to evaluate the vibration, running RMS or VDV should be used. Using the vector sum (total vibration value) is recommended for the evaluation of comfort and health risk assessment if the vibration in two or three axes are comparable.

For an assessment of occasional shocks and short-term vibration, the running RMS is used. In this case, the maximum value in the observation time is called as MTVV and is defined as the maximum instantaneous vibration magnitude. Vibration transmitted to the human body should be measured at a point between the body and the vibrating surface. In the case of a sitting person, this will be a seat, the seat back or the floor under feet.

Vibration should be measured according to the axis direction that begins at the point of human contact with the vibrating surface. The vertical axis (Z) should follow the orientation of the body, so the Z axis does not necessarily have to be vertical. The direction of the axis must be specified in the report.

The duration of the measurement shall be sufficient to ensure statistical accuracy and should take into account the typical vibration exposure. Measuring time should also be included in the report. The health of sitting persons is affected by vibrations in the frequency range of 0.5 Hz to 80 Hz. Measurements should be made using the appropriate frequency weightings: the Wk (Z-axis) and the Wd (axes X, Y). Because horizontal vibration is more harmful, the weighting coefficients should be 1.4 for the X, Y and 1 for the Z axis. Weighted RMS should be assessed in each of the 3 directions on the seat surface. In special cases, other weightings, such as Wc, Wf, We, Wj should be used.

Whole-body vibration should be evaluated on the basis of the result of the daily dose of A (8) expressed as equivalent frequency-weighted acceleration within eight hours, and calculated as the highest value of RMS or VDV determined in three axes X, Y, Z.

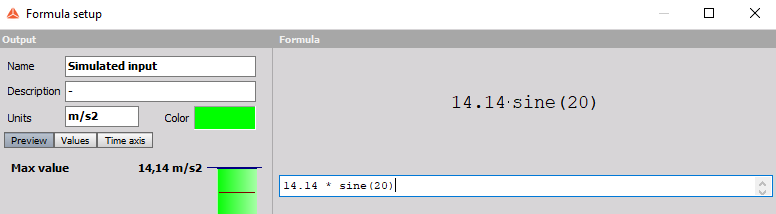

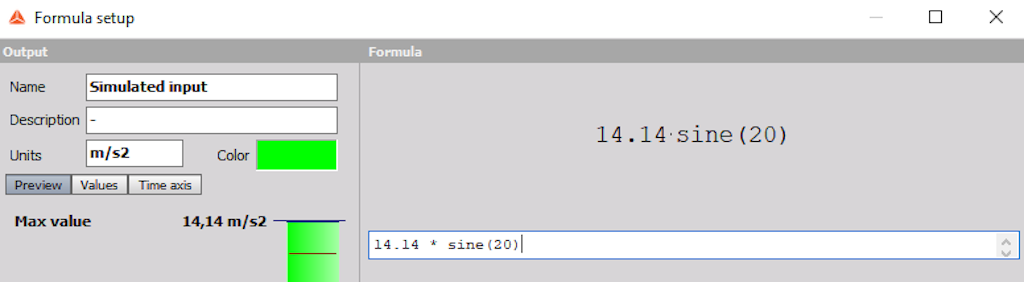

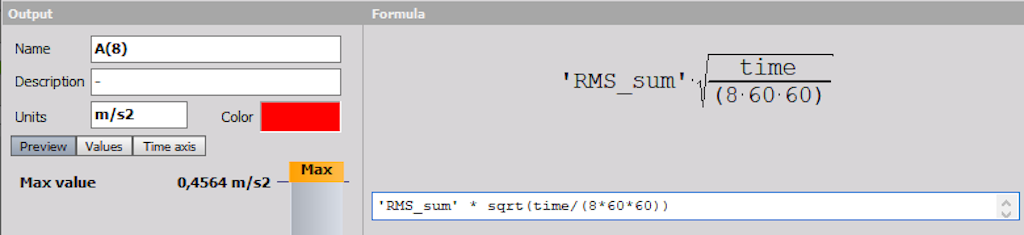

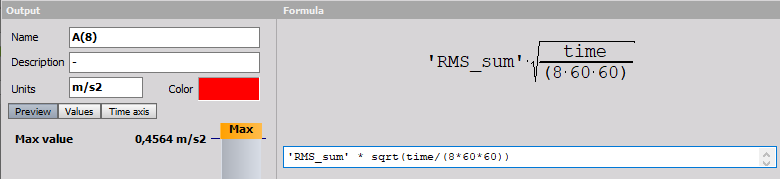

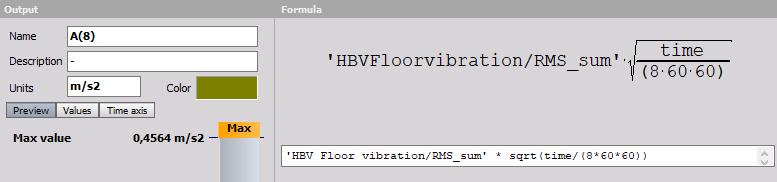

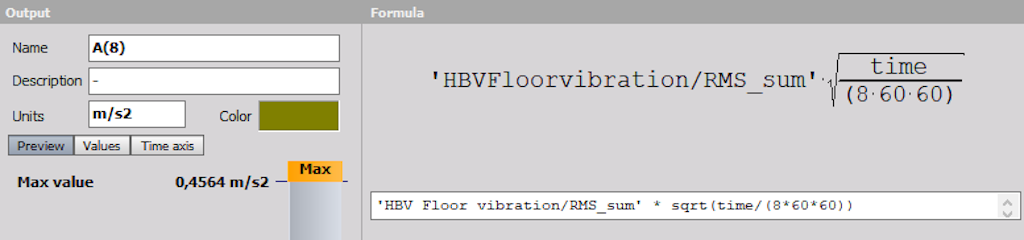

Based on the frequency-weighted acceleration signals, the daily vibration exposure is determined by calculating the exposure for each of the three axes separately and then selecting the highest of the three values. This necessitates an additional factor, ki, that must be applied to the measured vibration values. For the X and Y-direction, the factor is 1.4. For the Z-direction, the factor is 1.0:

A_x(8)=a_{wx} \cdot 1.4 \sqrt{\frac{T_{exp}}{T_0}}

A_y(8)=a_{wy} \cdot 1.4 \sqrt{\frac{T_{exp}}{T_0}}

A_z(8)=a_{wz} \cdot 1.0 \sqrt{\frac{T_{exp}}{T_0}}

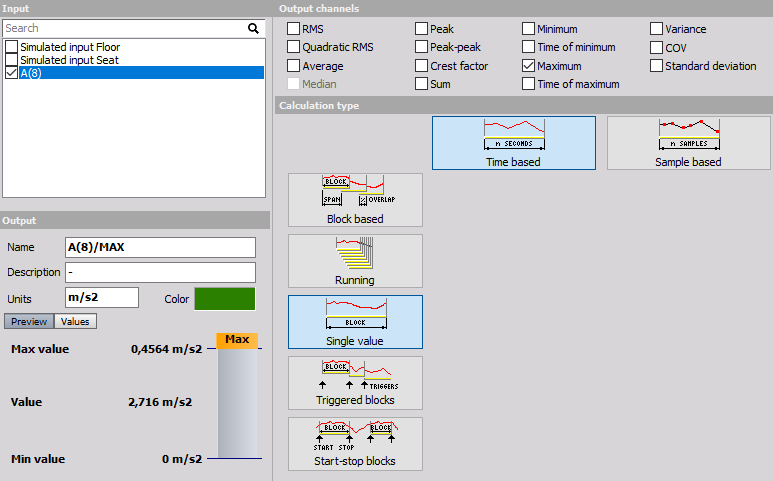

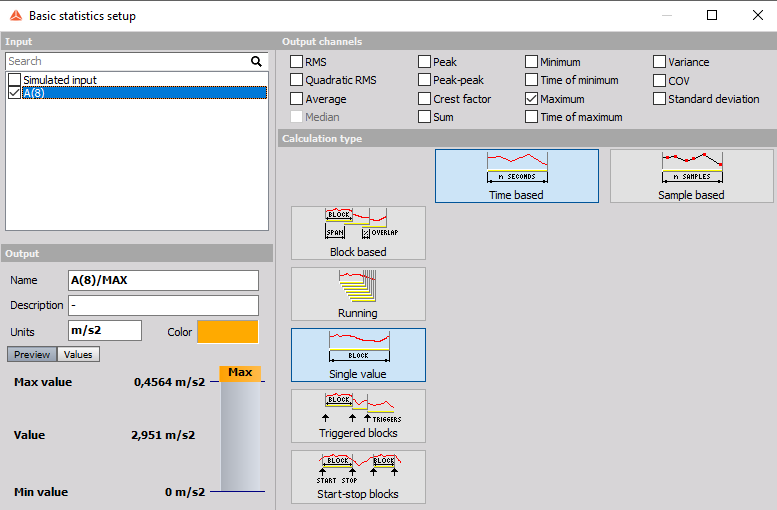

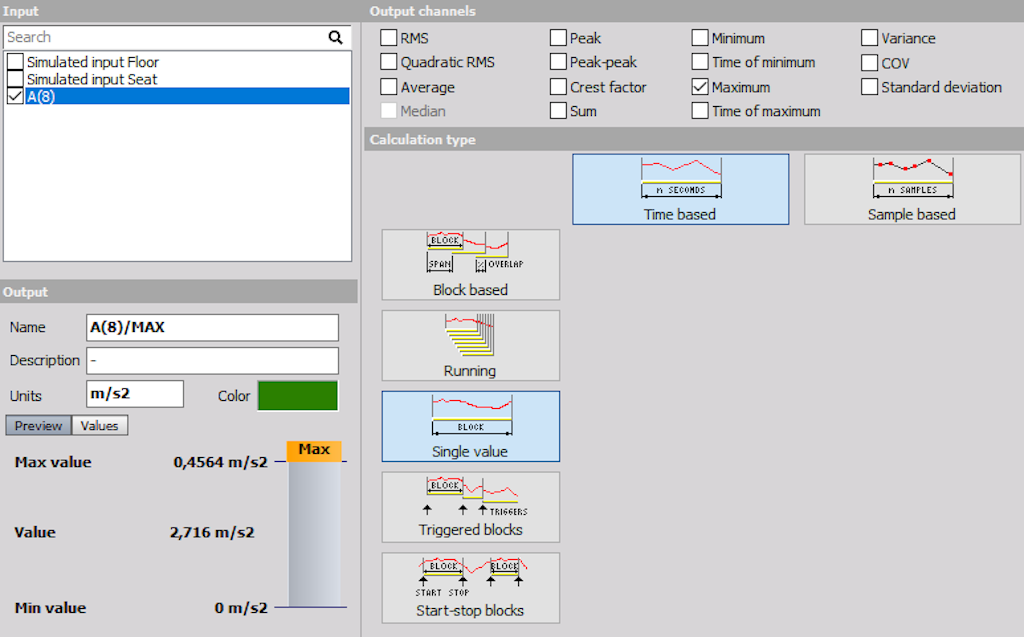

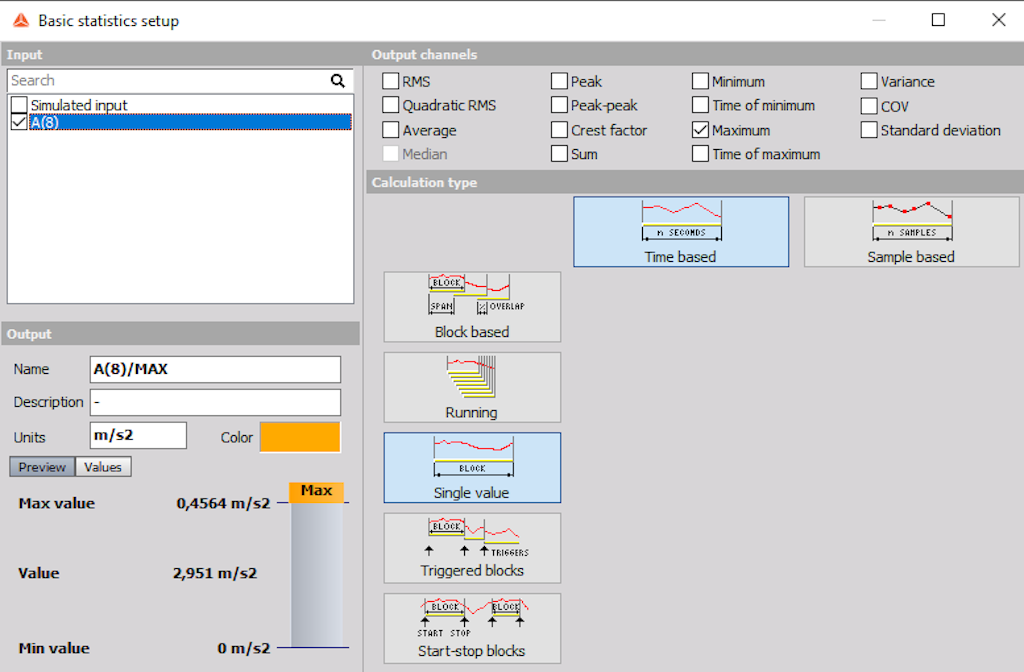

The maximum of these three values will then be the daily vibration exposure:

A(8) = max\{A_X(8),A_y(8),A_z(8)\}

This is significantly different than the procedure used to determine hand-arm vibration exposure, where the three axes were combined to a single, total vibration value. However, according to ISO 2631-1, Section 6.5, a vibration total value may be used if no dominant axis of vibration can be found. The vibration total value for whole body vibration is calculated according to the following equation:

a_v=\sqrt{k^2_x a^2_{wx}+k^2_ya^2_{wy} +k^2_za^2_{wz}}

In some countries, different exposure limit values are given for different axes. Therefore, a paradox may occur such that, while the axis with the largest exposure value will not be found critical, another axis with a smaller exposure value will be above the limit for this axis. The report, based on the axis with the highest value, would not indicate a risk, even though the limit is violated for another axis.

If a worker is exposed to more than one source of vibration, the partial vibration exposure Aj, i(8), for each axis and operation i, is to be calculated first:

A_{x,i}(8)=a_{wx,i} \cdot 1.4 \sqrt {\frac {t_{exp}}{T_0}}

A_{y,i}(8)=a_{wy,i} \cdot 1.4 \sqrt {\frac {t_{exp}}{T_0}}

A_{z,i}(8)=a_{zy,i} \cdot 1.4 \sqrt {\frac {t_{exp}}{T_0}}

The partial vibration exposures are then added for each of the three axes separately, and the total daily vibration exposure is found as the maximum of these three sums:

\left. \begin{array}{cc} A_x(8)=\sqrt{A_{x,1}^2 (8)+A^2_{x,2}(8) + ...+A^2_{x,n}(8)} \\ A_y(8)=\sqrt{A_{y,1}^2 (8)+A^2_{y,2}(8) + ...+A^2_{y,n}(8)} \\ A_z(8)=\sqrt{A_{z,1}^2 (8)+A^2_{z,2}(8) + ...+A^2_{z,n}(8)} \end{array} \right\} A(8)=max \{A_x(8),A_y(8),A_z(8) \}

The total daily vibration dose, A(8), applies well if the vibration history is rather smooth, free of shocks or other sudden changes or peaks in the acceleration. However, when, for example, driving a vehicle over rough surfaces, such as found on construction sites and sandpits, shock like events may occur and an assessment based on RMS values may no longer be appropriate. The fourth power vibration dose value (VDV) has been developed to take such transients into account. Unlike RMS vibration magnitude, the measured VDV is a cumulative value and increases with the measurement time. It is, therefore, important for any measurement of VDV, to know the period over which the value was measured. Further, due to the fourth power, transients and peaks are given more weight in the integration. If the measurement time is shorter than the estimated exposure time, the measured VDV must be expanded to the actual exposure time:

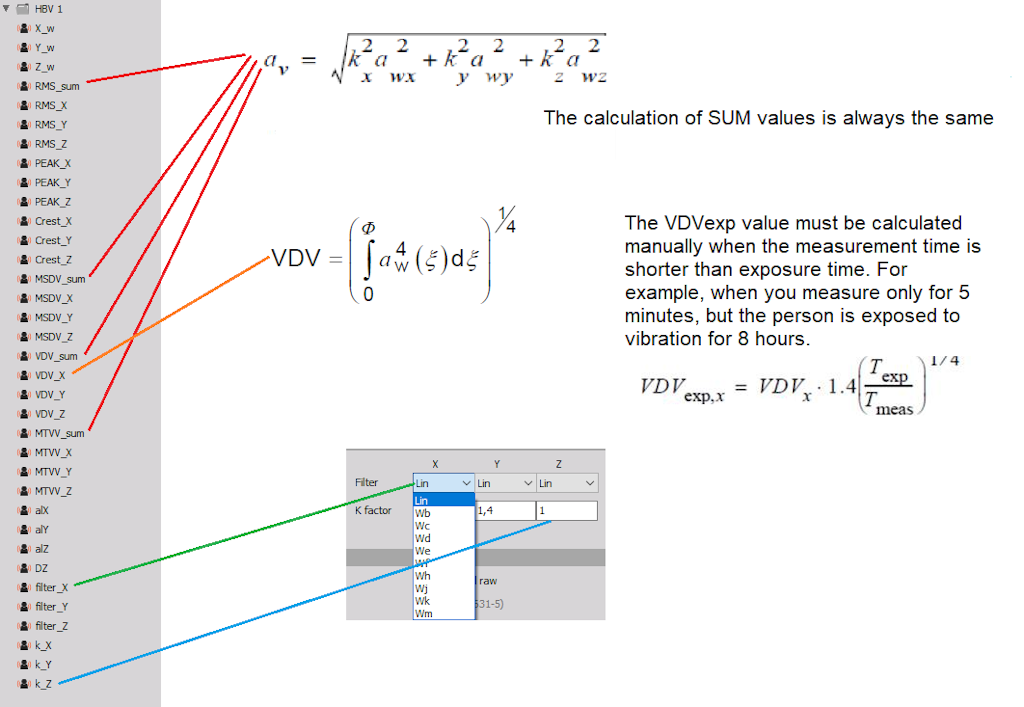

VDV_{exp,x}=VDV_x \cdot 1.4(\frac{T_{exp}}{T_{meas}})^{1/4}

VDV_{exp,y}=VDV_y \cdot 1.4(\frac{T_{exp}}{T_{meas}})^{1/4}

VDV_{exp,z}=VDV_z \cdot 1.0(\frac{T_{exp}}{T_{meas}})^{1/4}

Where Tmeas is the measurement period and Texp is the full expected exposure time, and note again the k-factors (1.4, 1.4 and 1.0). Further, if a person is exposed to more than one vibration source, the total VDV is to be calculated from the partial vibration dose values for each axis:

\left. \begin{array}{cc} VDV_x=(VDV^4_{x,1}+VDV_{x,2}^4+...+ VDV_{x,n}^4)^{1/4} \\ VDV_y=(VDV^4_{y,1}+VDV_{y,2}^4+...+ VDV_{y,n}^4)^{1/4} \\ VDV_z=(VDV^4_{z,1}+VDV_{z,2}^4+...+ VDV_{z,n}^4)^{1/4} \end{array} \right\} (dailyVDV)=max \{VDV_x. VDV_y, VDV_z\}

The highest of the three individual VDVs gives the daily VDV.

Another useful quantity when investigating human vibration with transients is the running RMS. It has a short integration time of 1 s and thus, is well suited to indicate the magnitude of short events. The so-called maximum transient vibration value (MTVV) represents the maximum running RMS value found over one measurement period.

ISO 2631-1 provides some guidelines concerning when it is recommended to consider VDV, running RMS and MTVV instead of the vibration magnitude, aw:

If, VDV should be considered in addition to RMS

CF=\frac{Peak}{RMS}\gt 9

If, MTVV should be considered in addition to RMS

\frac{MTVV}{RMS} \gt1.5

If, VDV should be considered in addition to RMS

\frac{MTVV}{RMS \cdot T^{1/4}} \gt1.75

If one of these conditions is given, it indicates that the vibration history had peaks significantly above the general average vibration level.

The ratio between the Peak value and RMS vibration magnitude, the crest factor (CF), is considered to be a rather uncertain criterion because the peak may have occurred at a different time ranging from minutes to hours before or after the vibration event that determined the RMS.

Page 1 of 17

Hand-arm vibration measurement

The second application is the measurement of hand-arm where the sensors are installed on special adapters for holding them on a handle or between fingers. The orientation of the sensor is not important in this case since all three axes have the same weighting.

Hand-arm vibration is experienced through the hand and arm. Daily exposure to hand-arm vibration over a number of years can cause permanent physical damage, usually resulting in what is commonly known as white finger syndrome, or it can damage the joints and muscles of the wrist and/or elbow.

Measurement of hand-arm vibration refers to three main cases:
when the operator's hands have direct contact with the surface of the vibrating machine (steering wheel or handle),
when the operator feeds the machine with the material through which the vibration is transmitted to a hand (woodcutting),
when the operator holds the vibrating device in their hands (drills, pneumatic hammers).

Typical vibration exposure consists of short periods in which the operator has a contact with the tool. Therefore, it is recommended to perform a few short measurements rather than one long measurement. For each task, the measurements should be done at least 3 times and results averaged. The total measuring time should be at least 1 minute. Measurement blocks shorter than 8 seconds should be avoided because they would not correctly capture low-frequency content.

The fundamental quantity used in the evaluation of hand-arm vibration is the vector sum called AEQ which is the basis for the calculation of daily exposure.

To identify the daily exposure it is necessary to identify all the sources of vibration, which means to identify all working modes of tools (drilling with a hammer and without), and changes in the conditions of use of the device. This information is necessary for the proper organization of measurement so as to include as many common tasks of the operator, during which he is exposed to hand-arm vibration. Daily exposure should be calculated for each source of vibration.

Vibration sources for hand-arm vibrations

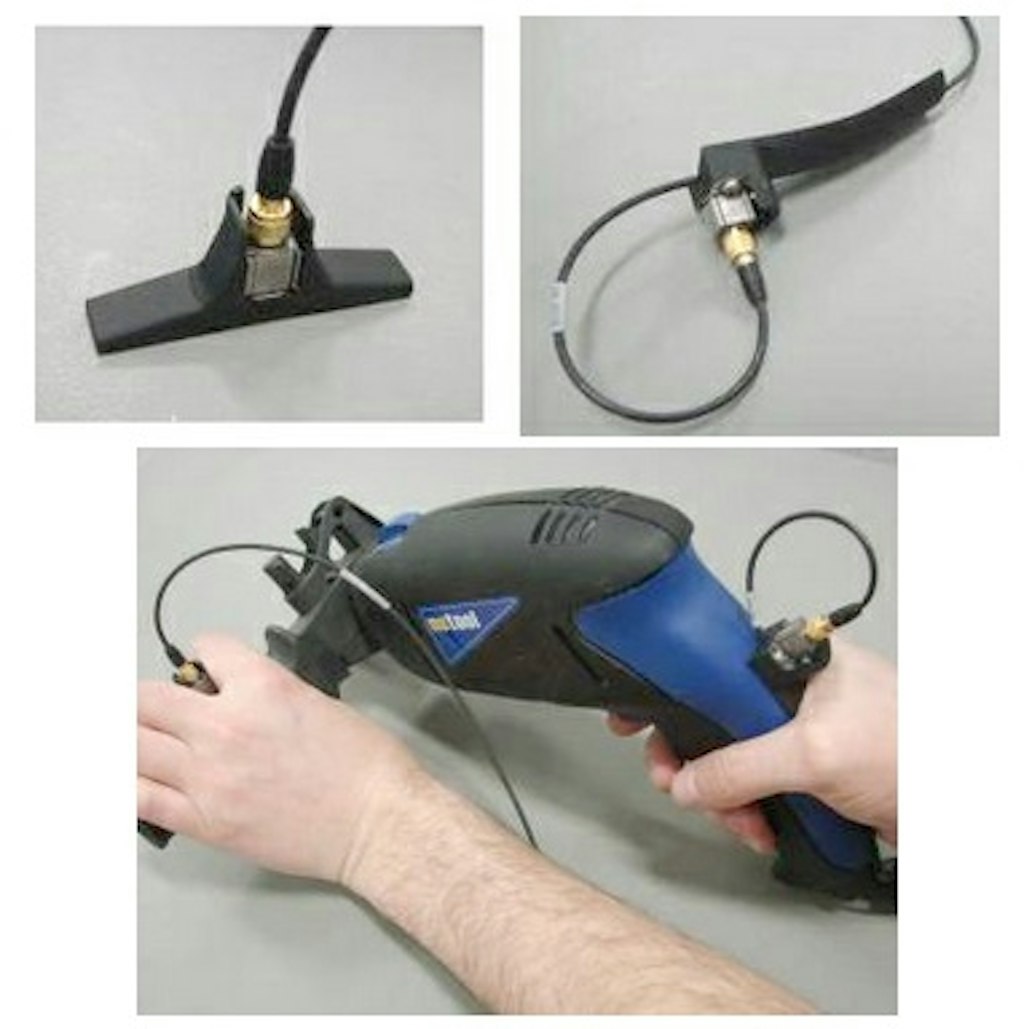

The next step is to choose how to mount the accelerometer. Hand-arm vibration should be measured in place, or at the point of contact with the hand tool. The best location is in the center of the handle, it is the most representative of the location if the position does not interfere with the performance of tasks. The accelerometer should be rigidly attached to a vibrating surface. Measurements directly at hand are performed using special adapters. In the case of some power tools, measurement on both sides of the hand is also recommended. The mounting location should be included in the measurement report. Measuring time should include a representative tool for operation time. The measurement should start from the moment you touch a vibrating device and should end when the contact is broken or the vibration stops. In case the real-time of the contact is short, the measurement time can be artificially extended in order to better estimate the exposure to vibrations during contact with the device.

Measuring hand-arm vibrations with an accelerometer attached to the device

In the event that the device generates a sudden shock, the measurement should include shocks and the appropriate length of time before and after the occurrence of shocks. It is also important to determine the number of shocks per shift. The minimum period of time depends on the vibration signal, tools, and activities. The total measurement time, however, should not be less than 1 minute. Measurements of less than 8 seconds are considered to be uncertain, particularly with regard to the assessment of low frequency and should be avoided.

If it is impossible to measure for more than 1 minute, multiple measurements should be carried out to create a combined measurement of at least 1 minute. Typical exposure time is calculated on the basis of the relevant exposure during the complete task or over the duration of 30 minutes in typical work and the information about the work cycle (number of cycles per shift). Assessment of exposure time can be made by using a timer, the analyzer or analysis of video recordings.

The three-axis measurement is recommended. If this is not possible, measurement in one dominant axis is allowed.

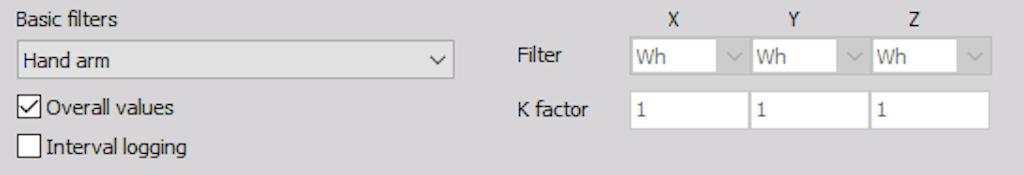

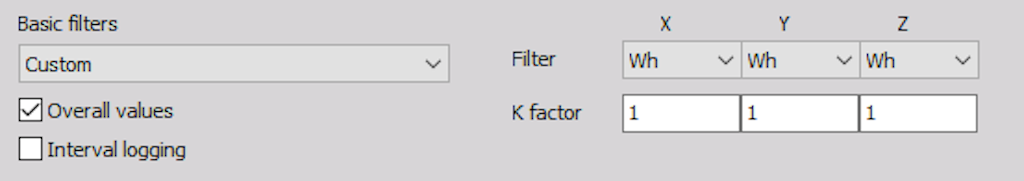

ISO 5349-1:2001 recommends determining the frequency-weighted RMS acceleration in three directions: On axis with the arm and in two other directions in the plane between hand and grip. The best solution is using a miniature triaxial accelerometer, which picks up the vibration in all three directions at the same point and only adds a few grams of transducer mass.

When addressing root mean square values of acceleration in human vibration, ISO standards use lowercase a. The frequency range included in the analysis is 8 - 1000 Hz. Frequency weighting Wh is used for all three axes, even though the anatomy and thus sensitivity of the hand-arm system differ along the arm and in a transverse direction.

The three frequency weighted acceleration components are denoted ahwx, ahwy and ahwz. These are then combined with the so-called vibration total value, ahv, the root-sum-of-squares of the three components:

a_{hv}=\sqrt{(k_xa_{hwx})^2+(k_ya_{hwy})^2+(k_za_{hwz})^2}

In contrast to whole-body vibrations, when calculating the root sum of squares for hand-arm vibrations, all axes are, theoretically, multiplied with the same weighting factor, k=1.0. Usually, to simplify the equations, the factors will be dropped.

The daily vibration exposure A(8) is calculated from this vibration total value:

A(8)=a_{hv}\sqrt{\frac{T_{exp}}{T_0}}

Where T0 is the reference duration of 8 hours and Texp is an estimate of the time that the tool operators are exposed to the vibration or the duration of the entire operation including breaks. If a person is exposed to more than one source of vibration, a partial vibration exposure Ai(8) for each operation i is to be calculated:

A_i(8)=a_{hv,i}\sqrt{\frac{T_{exp,i}}{T_0}}

The partial vibration exposure values are then combined to give the overall daily exposure value A(8), for that person:

A(8)=\sqrt{A^2_1(8)+A^2_2(8)+...+A^2_n(8)}

Page 1 of 17

Exposure point system

The measurement engineer, or any other professional, dealing regularly with vibration measurements will easily develop a good feeling for quantities such as the Daily vibration exposure value (A(8)) and VDV. However, to the layman, exposures expressed in units such as m/s2 will usually be difficult to grasp. If this person then must make decisions based on such quantities, those decisions may become needlessly difficult.

In order to facilitate those decisions, a more simple and intuitive means to express daily vibration exposure A(8) has been introduced, exposure points. For the user or decision-maker, expressing exposure with the point system has two advantages:

1) The point system avoids units: The critical vibration magnitudes for hand-arm and whole-body vibrations differ (the hand-arm system can cope with larger magnitudes). In contrast, the exposure point system is defined in such a way that, in both cases (hand-arm and whole-body vibrations), the exposure action value is reached at 100 points.
2) Once the exposure is expressed in points, there is no need for complicated power laws: Exposure points are simply added together. If a worker is exposed to several vibration sources, the total number of exposure points is simply the sum of the exposure points for the sources. This also means that exposure points change simply with time Â– twice the exposure time, twice the number of points.

For hand-arm vibrations, exposure points are calculated for the combined three axes, as follows:

P_E= \biggl(\frac{a_{hv}}{2.5 m/s^2}\biggl)^2 \frac{T_{exp}}{T_0}100

Where ahv is the vibration total value (RMS VTV), Texp the exposure time in hours and T0 the reference duration of 8 hours. Note that the vibration magnitude of 2.5m/s2 corresponds to the action value for hand-arm vibrations. As a consequence, the conversion between A(8) and PE will be such, that the exposures equal to the action value (2.5 m/s2 A(8)) will give 100 points, and exposures equal to the limit value (5 m/s2 A(8)) will give 400 points. It is also possible to directly convert between A(8) and PE:

P_E=A(8)^2 \frac{100}{(2.5 m/s^2)^2}

For whole-body vibrations, exposure points are calculated for each of the three axes separately, as follows:

P_{E,j}= \biggl(\frac{k_ja_{wj}}{0.5 m/s^2} \biggl)^2 \frac{T_{exp}}{T_0}100

Where kj is the weighting factor for the X, Y or Z-axis respectively; awj is the vibration magnitude (RMS value) of either the X, Y or Z-axis; Texp is the exposure time in hours, and T0 is the reference duration of 8 hours. Note that the vibration magnitude of 0.5m/s2 corresponds to the action value for whole-body vibrations. Also in the case of whole-body vibrations, the conversion between A(8) and PE is such that an exposure action value of 0.5 m/s2 would be equal to 100 points. However, the exposure limit value of 1.15 m/s2 will be equal to 529 points.

To directly convert between A(8) and PE:

P_{E}= A(8)^2 \frac{100}{(0.5 m/s^2)^2}

Page 1 of 17

Measurement of seat effective amplitude transmissibility - SEAT

Determination of Seat Effective Amplitude Transmissibility (SEAT) does not directly give information about human exposure to vibration. The goal of the measurement is to determine the capability of a seat design to attenuate the vibrations present in a vehicle - to protect the driver from excessive vibrations.

The measurement, therefore, involves the determination of the vibration magnitude at two positions:

On the seat pan
Directly on the floor of the vehicle right underneath the seat.

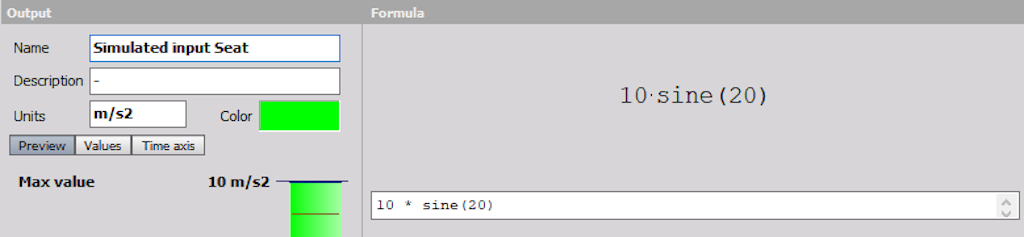

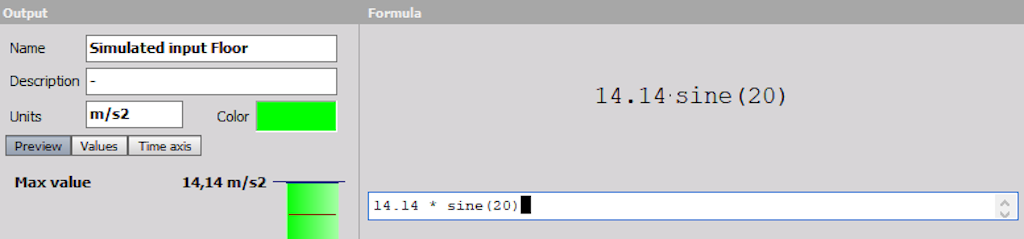

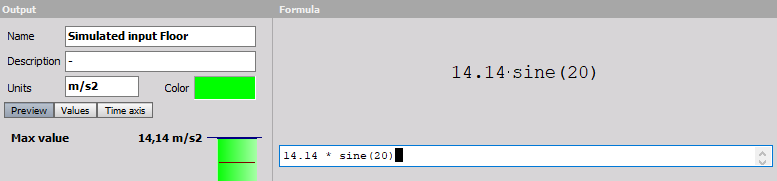

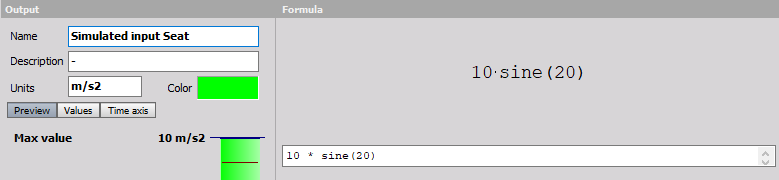

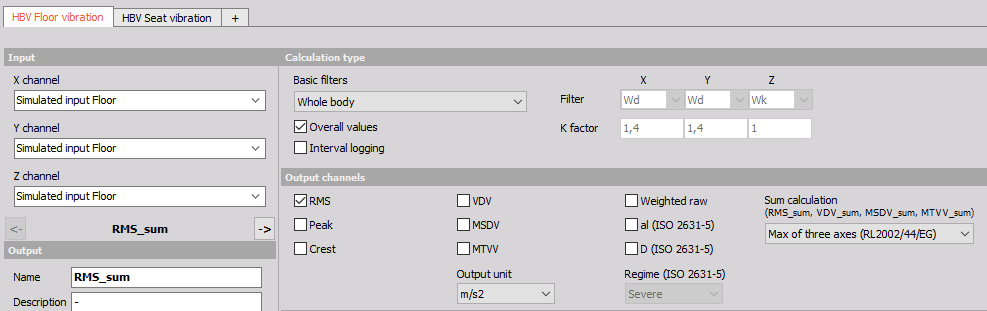

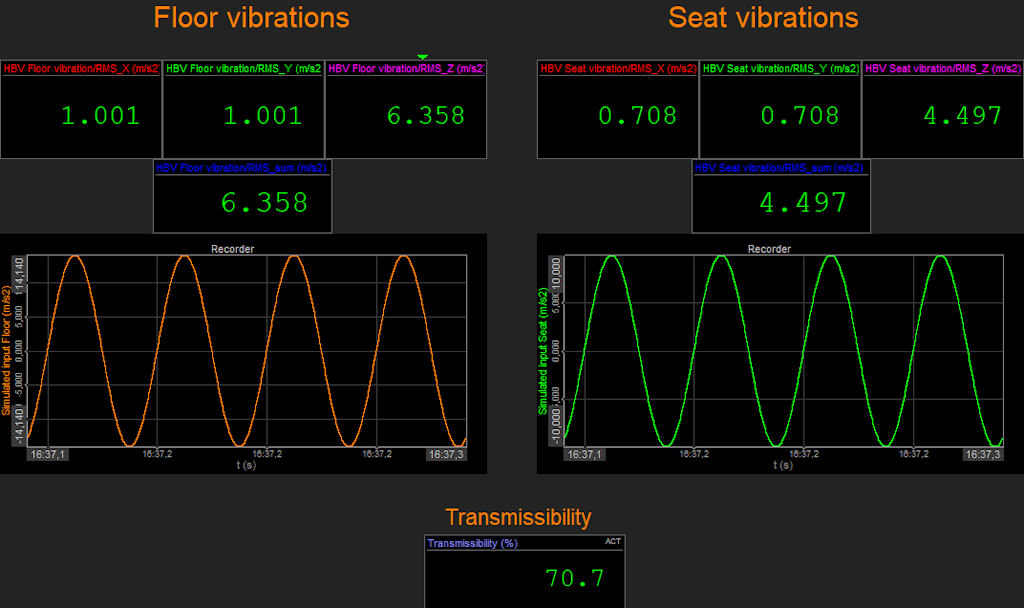

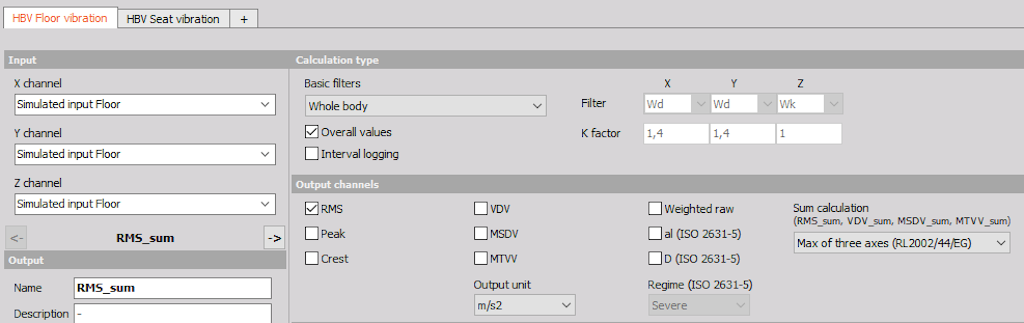

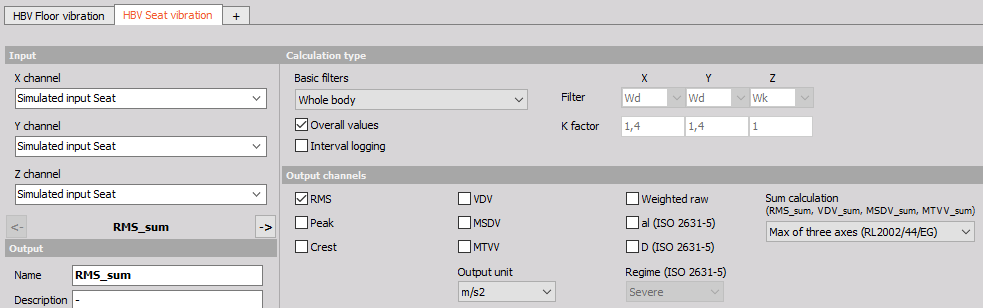

Measurement at these two points is done simultaneously and the SEAT is computed as the ratio between these two magnitudes. To express SEAT, one may use the frequency-weighted RMS vibration magnitudes (aw) or the VDVs. Further, rather than just using the ratio (a SEAT factor), one may multiply the result with 100 to express the seat effective vibration amplitude in percent.

Whether to use RMS or VDV depends on the vibrations encountered during the measurement. If the vibration history was rather smooth, then the RMS vibration magnitude is preferable. If, however, the vibrations included transients and shocks, it is recommended to compute SEAT based on VDVs.

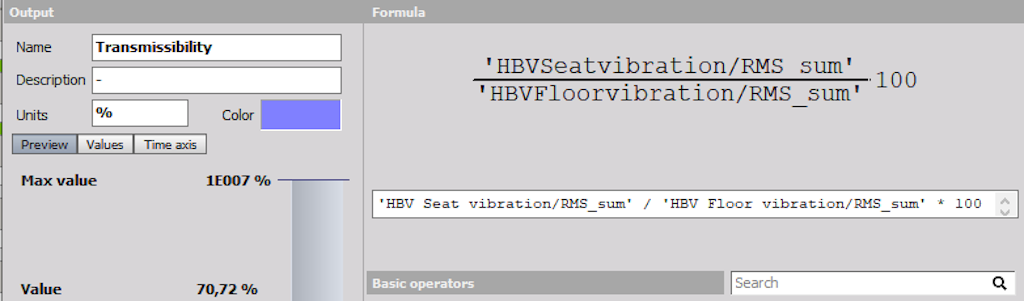

SEAT_{RMS}=\frac{a_{w,seat}}{a_{w,floor}}

SEAT_{VDV}=\frac{VDV_{seat}}{VDV_{floor}}

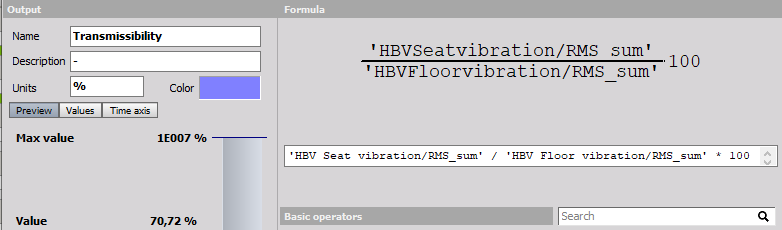

SEAT \% =SEAT \times 100

A seat would improve ride comfort when the SEAT is smaller than 1 or, expressed in percentage when SEAT% is less than 100%. If the value exceeds these limits, the seat actually amplifies vibrations and, thus, worsens ride comfort.

In context with health risk assessment, frequency weighting used for SEAT measurements is the same as for whole-body measurements

When assessing a seat's ability to attenuate vibrations, it is important to keep in mind that the seat and driver must be seen as one system. The driver will add mass to the seat, which preloads the seat springs, and changes the resonance behavior. Further, depending on posture, the seat driver combination will lead to a more or less stiff system (e.g., vibrations will be different if the driver sits relaxed or if feet are pressed against the floor).

Thus, depending on the driver's body and posture, the performance of seats can be very different. As a consequence, several measurements with different drivers and postures should be carried out to get the full picture.

Standards for laboratory SEAT measurements define exact masses to be used, specific seat adjustments, and detailed procedures, including processes such as warming up the seat, etc. Instead, the focus is on the assessment of SEAT factors under real working conditions, with real workers and no warm-up times. SEAT assessment standards may and should be consulted because they provide useful guidance.

Page 1 of 17

Lumbar spine measurement

The adverse health effects of prolonged exposure to the vibration that includes multiple shocks are related to dose measures.

The method described in ISO 2631 is generally applicable in cases where adverse health effects in the lumbar spine are concerned.

The calculation of the lumbar spine response described in ISO 2631 assumes that the person subjected to the vibration is seated in an upright position and does not voluntarily rise from the seat during the exposure. Different postures can result in different responses in the spine.

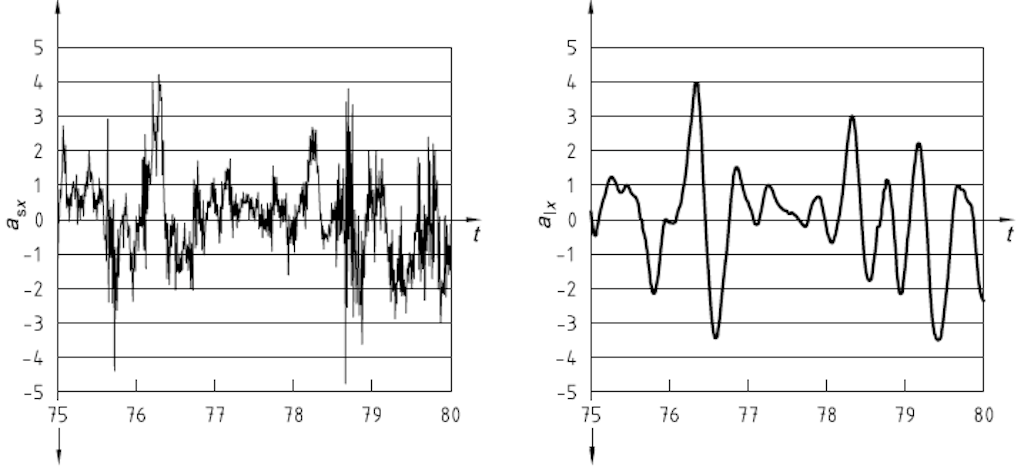

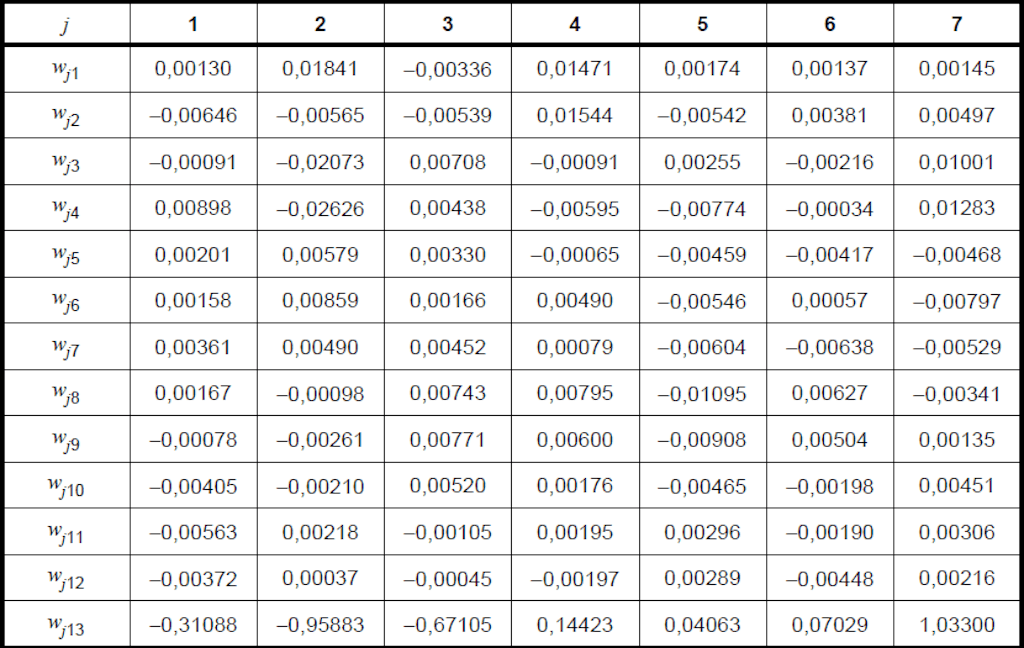

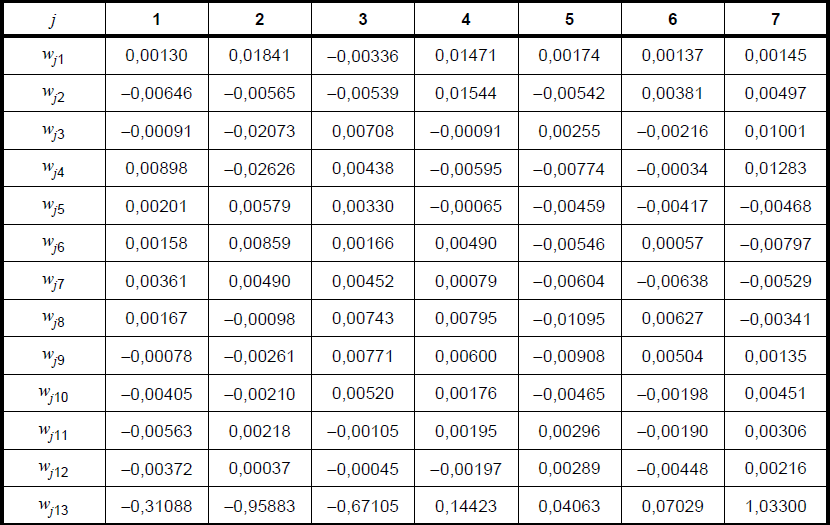

Predictive models are used to estimate the lumbar spine accelerations (\(a{Ix}, a{Iy},a{Iz}\)) in the \(x, y\) and (\z)\-directions in response to accelerations measured at the seat pad (\(a_{Sx}, a_{Sy},a_{Sz}\)) along the same bicentric axes.

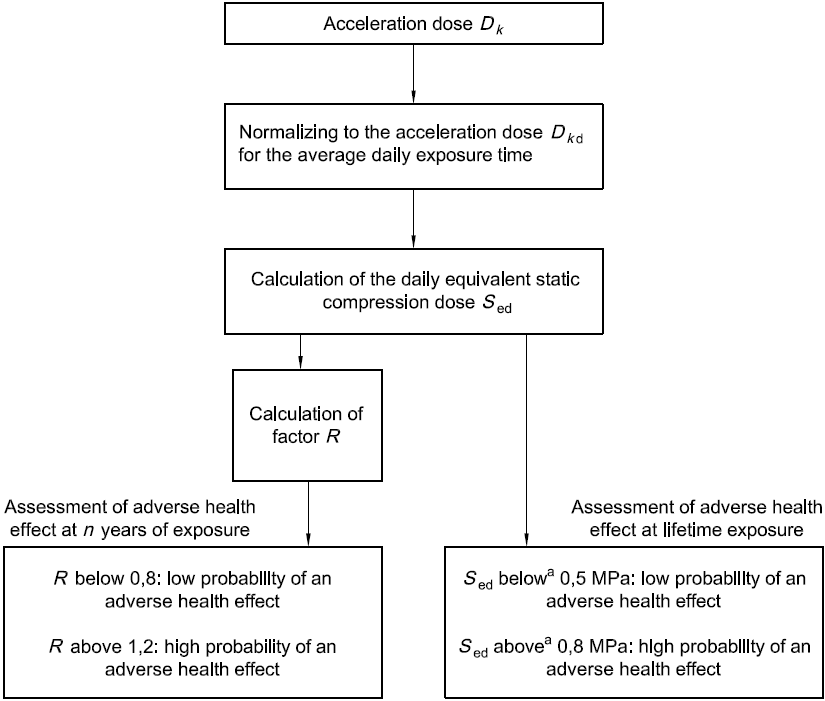

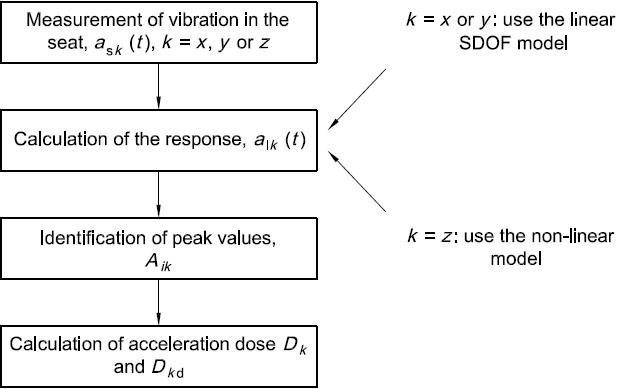

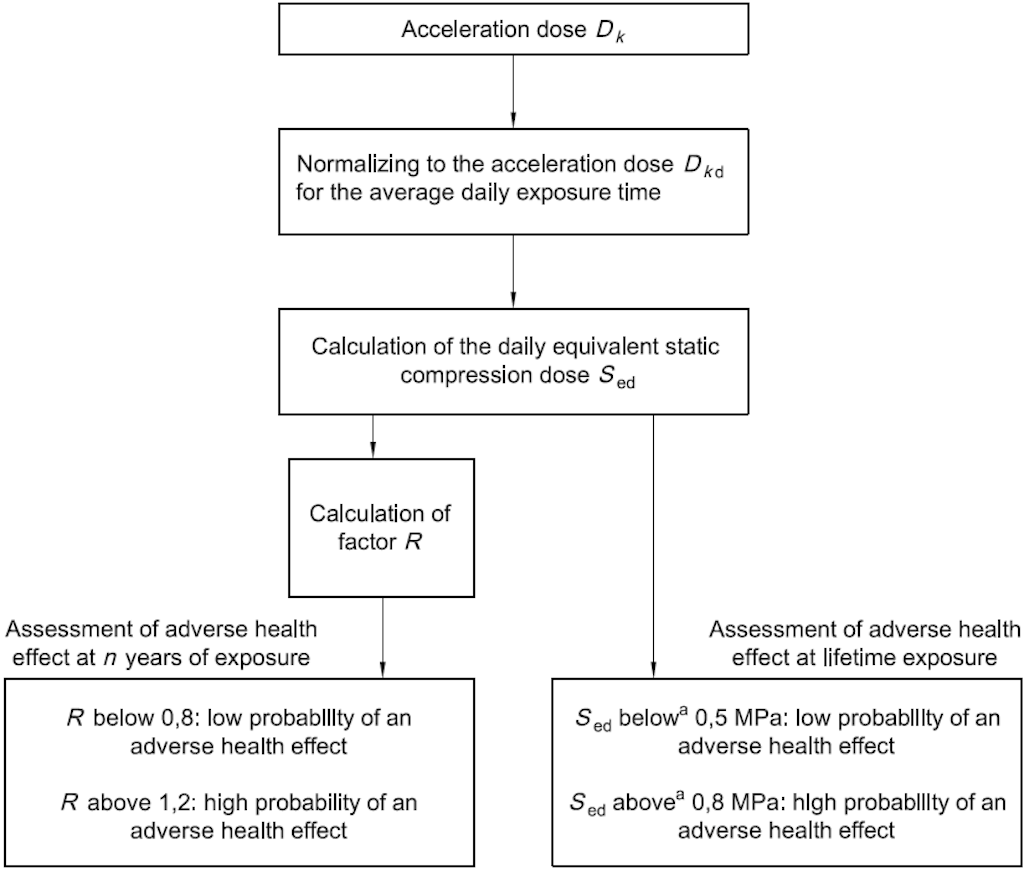

The determination of the spinal response acceleration dose involves the following steps:

calculation of the human response
counting of number and magnitudes of peaks
calculation of an acceleration dose by application of a dose model related to the Palmgren-miner fatigue theory

In the \(x\) - and \(y\)-axes, the spinal response is approximately linear and is represented by a single-degree-of-freedom (SDOF) lumped-parameter model, having the following characteristics:

natural frequency, \(fn\) = 2,125 Hz (\(ω_n\)= 13,35 Hz)
a critical damping ratio, ζ = 0,22

The lumbar spine response, \(a_{Ik}\) in [m/s2], is calculated from the equation of motion of an SDOF system:

a_{Ik}=2\zeta \omega(v_{Sk}-v_{Ik})+\omega^2_n (s_{Sk}-s_{Ik})

k is x or y
sSk and sIk are the displacement time histories in the seat and in the spine
vSk and vIk are the velocity time histories in the seat and in the spine

The values for the SDOF resonance frequency and damping ratio given above, result in the following values for the multipliers: 2ζwn=5,87s−12=5,87−1 and w2n=178s−22=178−2.

Spinal response in a vertical direction

In the z-direction, the spinal response is non-linear and is represented by a recurrent neural network model.

Lumbar spine z-axis acceleration, aIz in [m/s2], is predicted using the following equations:

a_{Iz}(t)= \sum^7_{j=1}W_ju_j(t)+W_8

u_j(t)=tanh \bigg[\sum^4_{i=1}w_{ji}a_{Iz}(t-i)+ \sum^{12}_{i=5}w_{ji}a_{Sz}(t-i+4)+w_{j13}

The model coefficients are specific to a sampling rate of 160 per second. Therefore, data collected at a different sampling rate shall be resampled to 160 samples per second.

Z-axis model coefficients for the equation for aIz:

Z-axis model coefficients for the equation for uj:

Calculation of acceleration dose

The acceleration dose, Dk [m/s2], in the k-direction, is defined as

D_k = \bigg[\sum_{i}A_{ik}^6 \bigg]^{1/6}

Aik is the ith peak of the response acceleration aik(t)
k = x,y or z

A peak is defined here as the maximum absolute value of the response acceleration between two consecutive zero crossings. For the x and y directions, peaks in positive and negative directions shall be counted. For the z direction, only positive peaks shall be counted (compression of the spine is of primary interest for exposure severity).

In calculating the dose, peaks of a considerably lower (by a factor of three or more) magnitude than the highest peak will not significantly contribute to the value associated with the 6th power term may be neglected.

For assessment of health effects, it is useful to determine the average daily dose, Dkd, in metres per second squared, to which a person will be exposed, using the following equation:

D_{kd}=D_k \bigg[\frac{t_d}{t_m}\bigg]^{1/6}

td is the duration of the daily exposure
tm is the period over which Dk has been measured

Equation for Dkd may be used when the total daily exposure can be represented by a single measurement period. When the daily vibration exposure consists of two or more periods of different magnitudes, the acceleration dose, in metres per second squared, for the total daily exposure shall be calculated as follows:

D_{kd}=\bigg[ \sum^n_{j=1}D^6_{kj} \frac{t_{dj}}{t_{mj}}\bigg]^{1/6}

tdj is the duration of the daily exposure to condition j
tmj is the period over which Dkj has been measured

Flowchart for calculation of the acceleration dose

Flowchart for calculation of acceleration dose

Relationship between acceleration dose and health effects

This guidance applies to people in normal health who are regularly exposed to vibration containing multiple shocks. Individuals with previous disorders affecting the spine, including those suffering from latent osteoporosis or other spinal disorders, may be more susceptible to injury. The guidance in this part of ISO 2631 applies to rectilinear x, y and z basicentric axes of the human body. It does not apply to high magnitude single-event shocks such as may result from a traffic accident that causes trauma.

It is assumed that multiple shocks cause transient pressure changes at the lumbar vertebral endplates that over time may result in adverse health effects, arising from material fatigue processes. Essential exposure-related factors are the number and magnitudes of peak compression in the spine. The peak compression in the spine is affected by anthropometric data (body mass, the size of endplates) and posture.

Adverse health effects of long-term whole-body multiple-shock exposure include an increased risk to the lower lumbar spine and the connected nervous system of the segments affected. Excessive mechanical stress and/or disturbances of the nutrition of and diffusion to the disc tissue may contribute to the degenerative processes in the lumbar segments. Multiple shocks and vibration exposure may also worsen certain endogenous pathological disturbances of the spine.

For the evaluation of the effects of internal pressure changes, the Palmgren-Miner approach is applied. Experimental data show that the value of the Palmgren-Miner exponent varies with biological tissue and test methodology from 5 to 14 for the cortical and trabecular bone to 20 for cartilage. For the purpose of estimating adverse health effects, a conservative exponent of 6 has been selected here.

The relationship between the predicted pressure changes and the predicted total tolerance of the exposed person can be used to assess the potential of an adverse health effect. The predicted response is of the bony vertebral endplate (hard tissue). The assessment is based on upright posture. A bending forward or twisting posture is likely to increase the adverse health effect.

Assessment of health effects

By the use of a biomechanical model, based on experimental data, it has been shown that there is a linear relationship between the part of compressive stress that is due to the input shocks and the peak acceleration response in the spine. An equivalent static compressive stress, Se, in megapascals, is calculated as follows:

S_{e}=\bigg[ \sum_{k=x,y,z}(m_kD_k)^6\bigg]^{1/6}

Recommended values of mk are:

mx = 0,015 MPa/(m/s2)
my = 0,035 MPa/(m/s2)
mz = 0,032 MPa/(m/s2)

The daily equivalent static compression dose, Sed, is obtained by normalizing Dk to the acceleration dose Dkd for the average daily exposure time

S_{ed}=\bigg[ \sum_{k=x,y,z}(m_kD_kd)^6\bigg]^{1/6}

In general a factor R can be defined for use in the assessment of the adverse health effects related to the human response acceleration dose. R should be calculated sequentially taking into account increased age (and reduced strength) as the exposure time increases. It is defined as follows:

R=\bigg[ \sum^n_{i=1}\bigg(\frac{S_{ed} \cdot N^{1/6}}{S_{ui}-c} \bigg)^6\bigg]^{1/6}

N is the number of exposure days per year
i is the year counter
n is the number of years of exposure
c is a constant representing the static stress due to gravitational force
Sui is the strength of the lumbar spine for a person of age (b+i) years
b is the age at which the exposure starts

A value of c = 0,25 MPa can be normally used for driving posture.

The value Sui varies with the bone density of the vertebrae, which normally is reduced with age. From in-vitro studies, the following relationship between Sui (in megapascals) and b+i (in years) has been derived:

S_{ui}=6,75-0,066(b+i)

There is a significant human variability and R < 0,8 indicates a low probability of an adverse health effect; R > 1,2 indicates a high probability of an adverse health effect.

A sequential calculation for a person who starts being exposed at the age of 20 years (b = 20) will reach R = 0,8 at the age of 65 (n = 45) if the daily dose Sed is equal to 0,5 MPa. The same person will reach R = 1,2 at the age of 65 if the daily dose Sed is equal to 0,8 MPa. This calculation is based on 240 days of equal exposure (N) per year. For application to another number of days of exposure per year, the appropriate Sed limits are achieved by multiplying the values 0,5 MPa and 0,8 MPa by (240/N)1/6.

The procedure for assessment of adverse health effects from the acceleration dose

Page 1 of 17

Human vibration module in Dewesoft

A new Human vibration module can be added by clicking on Human vibration icon:


Required hardware	SIRIUS ACC, MULTI, DEWE-43+DSI adapter
Required software	DewesoftX, SE or higher + HBV option, DSA or EE
Setup sample rate	At least 5 kHz

To use the human vibration module, please first select at least three vibration analog channels in the Analog in tab.

An example of a triaxial accelerometer, each axis has its own channel

Then add a new Human vibration module. Several modules can be used within a setup, and we will need three channels for each module.

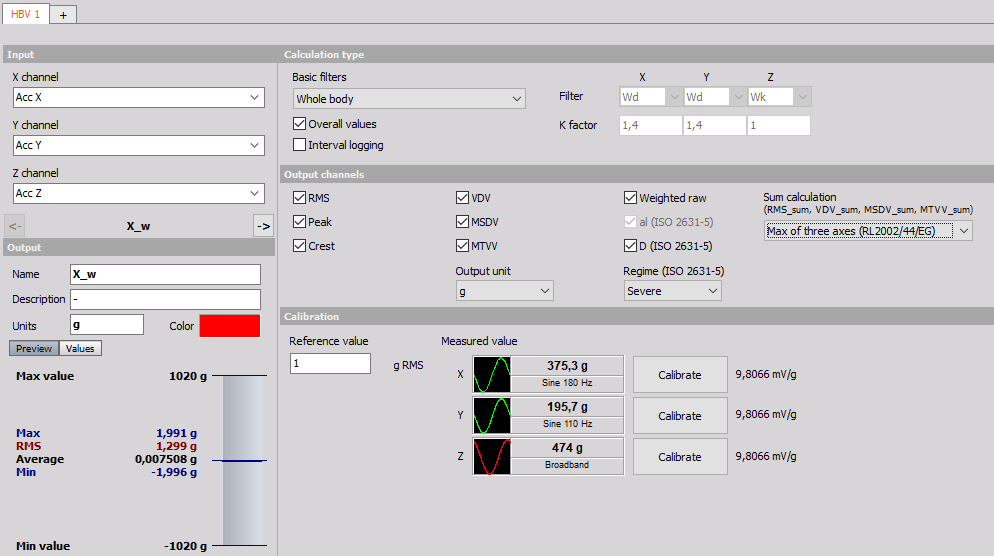

Setup screen of Human vibration module in Dewesoft

The next step is to assign them in the Input section of the Human vibration module. We should then already see our live values in the calibration part of the screen.

Page 1 of 17

Measurement modes

The next step is to define the measurement parameters. There are two basic modes of operation. First is the Whole body mode and the second one is Hand-arm mode.

Different modes define different Basic filters used to simulate the human response to the vibrations. These filters are defined from numerous measurements of the natural frequencies of certain parts of the human body.

Different calculation types in Dewesoft HBV module

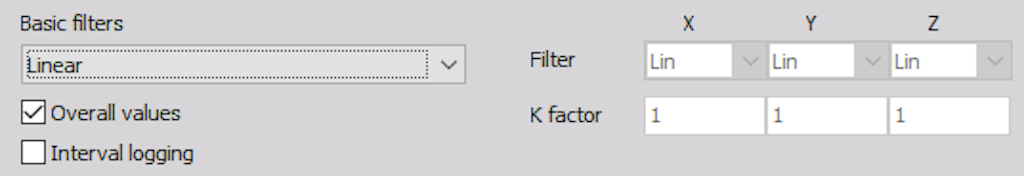

Linear - individual Filter and K factor settings can't be chosen, these are predefined. We can also use the Linear filter to check the measurement chain.

Whole-body - individual Filter and K factor settings can't be chosen, these are predefined. Whole-body is used for motion sickness (for example on ships).

Hand-arm - individual Filter and K factor settings can't be chosen, these are predefined.

Custom - Filter and K factor needs to be defined.

Custom filter

For Custom filter we need to define Filter X, Y and Z value: this individual value can be selected from drop-down lists on the right side to do special measurements (for example building vibrations or sea sickness). Filters are defined as following:

Filter selection for each axis individually

Lin - unweighted linear
Wb - vertical whole body, z axis (older ISO 2631-4)
Wc - horizontal whole body, x-axis
Wd - horizontal whole body, x or y axis
We - rotational whole body, all directions
Wf - motion sickness, z axis
Wh - hand arm, all directions
Wj - vertical head vibration, an x axis
Wk - vertical whole body, z axis
Wm - building vibration; all directions

With a custom filter, we also need to define the weighting K factor. This is a multiplication factor for each axis when calculating the vibration sum.

I would like to point out that we need to keep in mind the high pass frequency limit of the sensor and the amplifier used. For hand-arm mode, the high pass frequency is 6.4 Hz, which is easy for any sensor. For the whole body, the frequency limit is 0,4 Hz, where we need to choose the sensor and an amplifier carefully (we have an option to integrate high-pass filter in the accelerometer different from standard one, that is 1 kHz - which is too high). We can also use higher filters (like 3 Hz), if we know there is no frequency content below this limit. This will help to perform a measurement faster and with less error (lower frequency filters means longer settling times).

The recommended sampling rate of the measurement also depends on the application. For hand-arm, the minimum sampling rate is 5 kHz while for all the others 1 kHz is enough.

Special attention must be paid to the whole body filter for motion sickness (for example on ships) where the frequency limit is only 0,08 Hz. We need a very special sensor to measure this. One, that can be used, can be found here. It is a DC accelerometer, with micro-g resolution and it has a range from 2g to 200g.

DC accelerometer for motion sickness measurement

Page 1 of 17

Calculated parameters IN HBV module

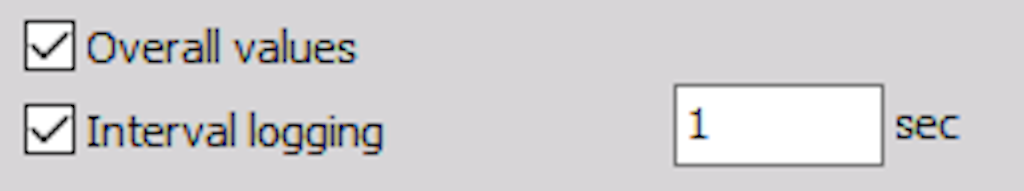

Next, we need to select the calculated parameters on the Calculate type section. These parameters can be either Overall values, which means that we have only one value at the end of the measurement, and/or Interval logged values. If we have an interval logged values, the time interval for logging in a contiguous field is defined in sec. For example, if we select to have Interval logging for RMS with 5-second intervals, we will get a new value of RMS after each 5-second interval. After that, the value is reset and the calculation is started again over.

We have several parameters to calculate.

The "root means square" (abbreviated RMS) value is a statistical measure of the magnitude of a weighted signal
Peak is the maximum deviation of the signal from the zero line
Crest is the ratio between the peak and RMS
VDV is the fourth power vibration dose value
MSDV is the motion sickness dose value
MTVV is the maximum transient vibration value, calculated at one second interval.
Weighted raw channel. This is the full speed time signal weighted with a chosen filter. We can use those channels for the calculation of the FFT or CPB spectrum
al and D are the values based on ISO 2631-5 which describe the calculations and the limits for lumbar spine response to vibrations. The base for this standard is that the professional drivers of buses or trucks are exposed to vibrations when driving on rough roads or over bumps. Multiple shocks cause transient pressure changes at the lumbar vertebral end plates which can cause damage after years of driving. The al is the lumbar spine response from excitation measured in all three directions. The D value is the acceleration dose, measured from the lumbar spine response. These values are enough to evaluate the human vibration exposure according to ISO 2631-5.

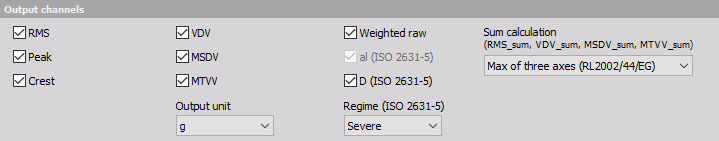

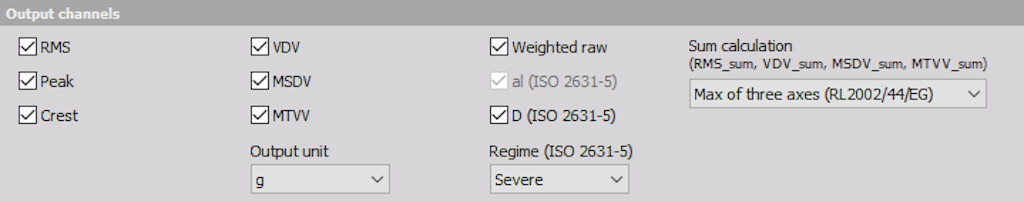

Output channels with description, unit, type and rate

Output unit can be selected from:

g
m/s2
mm/s2

Each value is calculated for each axis individually while the RMS, MSDV, VDV, and MTVV are also calculated for the sum of all three axes. These values are enough to evaluate human vibration exposure according to ISO 2631 and ISO 8041.
