New KRYPTON® Module for Direct Current Measurement

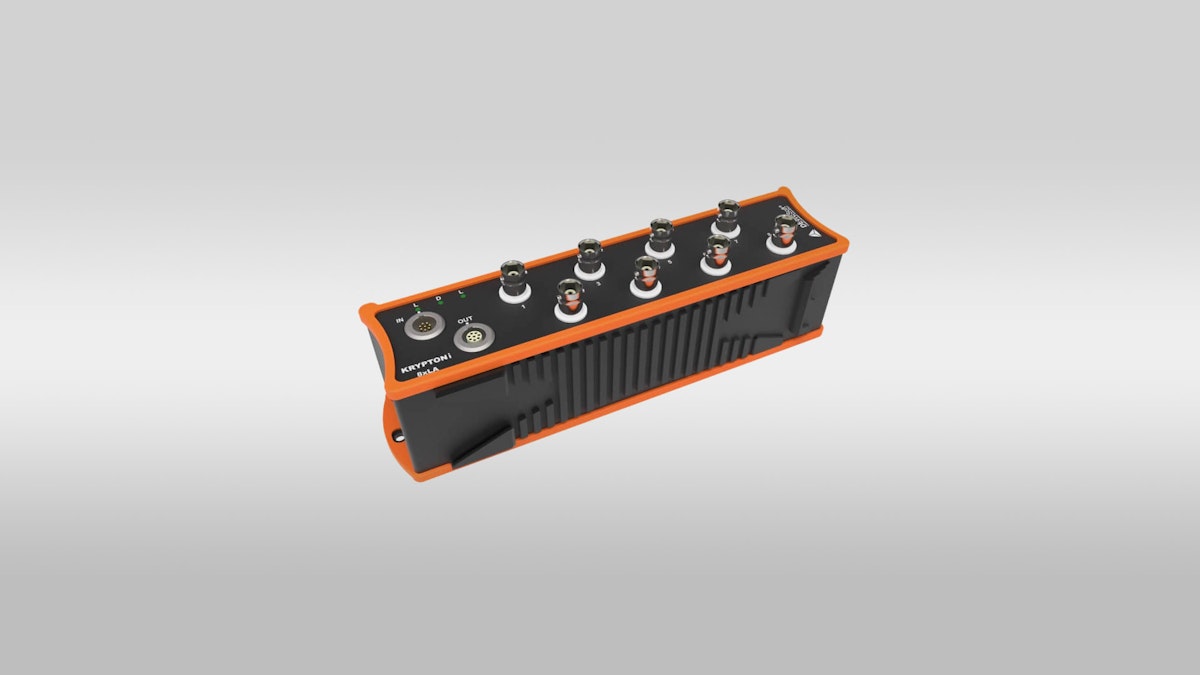

KRYPTONi-8xLA is a rugged multichannel low-current measurement module. It is a perfect device for data acquisition in control applications requiring an input current range of ±20 mA.

KRYPTONi-8xLA has 8 analog channels. Data acquisition is performed by 24-bit ADC with a sampling rate of up to 20 kS/sec. Each channel includes analog 5th order (Bessel type) anti-aliasing filter with a 41 kHz cut-off frequency.

Rugged design enables the performance of KRYPTONi-8xLA in extreme conditions. It can withstand vibrations up to 13 g RMS and shocks up to 100 g. The temperature operating range of KRYPTONi-8xLA is between -40°C and +85 °C. With the use of a proper mating connector IP67 ingress protection rating can be reached.

The KRYPTON devices are using 100 Mbit/s EtherCAT protocol for data transfer and synchronization. As with all standard KRYPTON devices, it can be daisy-chained in a single measurement chain using a single cable for data, power, and synchronization.

KRYPTONi-8xLA comes in standard dual-width chassis with BNC input connectors.

For full specs check the KRYPTON technical specifications page.
