KRYPTON ONE High Voltage and High Isolation DAQ Modules

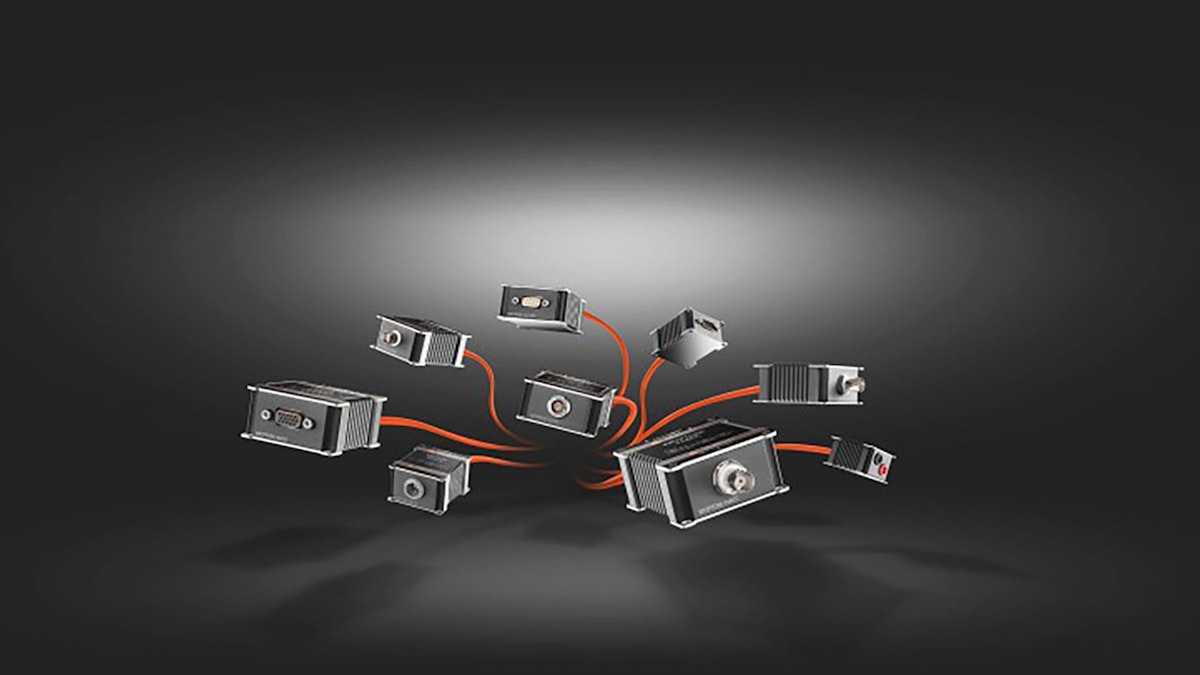

KRYPTON ONE DAQ instruments are rugged, small and fully distributable 1-channel data acquisition modules.

The latest addition to the KRYPTON ONE family are two modules for high voltage and thermocouple temperature measurements with high isolation:

• The KRYPTONi-1xHV

• The KRYPTONi-1xTH-HV

Both DAQ modules provide safety at high voltages with an overvoltage category CATII 1000V.

The KRYPTONi-1xHV CAT II ±1000V input module

The KRYPTONi-1xHV module is designed for high voltage measurements with a single input range of ±1000V.

The acquisition is based on 24-bit SAR ADC with a sampling rate of up to 40 kS/sec and an additional anti-aliasing filter. The input connector is a 4mm safety banana jack.

KRYPTONi-1xTH-HV universal high isolation thermocouple onput module

The KRYPTONi-1xTH-HV is an isolated single thermocouple module designed for temperature measurements at high voltages.

It supports K-type thermocouple. Temperature is acquired by using a 24-bit delta-sigma ADC with the sampling rate up to 100S/sec. Cold junction compensation is provided by a Pt1000 sensing element. The input connector, LEMO Redel 2P series, is designed in plastic to enable sufficient isolation and clearances.

Navigate to the KRYPTON DAQ system page for the full technical specification, manual and other information.
